Placa Adaptadora Fonte De Alimentação ATX XH-M229

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

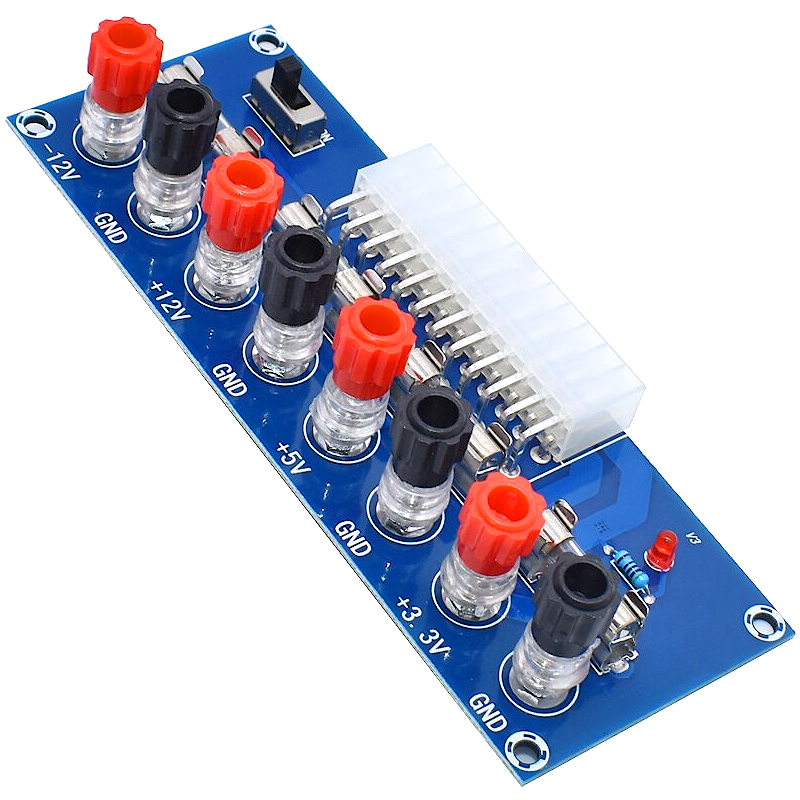

XH-M229 Desktop PC ATX Power Supply Transfer Module This is a power supply module, which splits a standard 24 pin ATX power supply cable into four different power outputs each with separate ground and output fuses. At the output of the module, there are two binding posts for all four outputs these binding posts can be used to power an external device. Ther is an onboard ON/OFF switch that can be used to switch ON/OFF the outputs at any given time. XH-M229 Desktop Computer Chassis Power Supply Module ATX Transfer Board Power Output Terminal Module, XH-M229 Desktop PC Power ATX Transfer Board Supply Power Module Precise 24Pin Alimentation PC Ordinateur ATX Transfer Board, XH-M229 Desktop PC ATX Power Supply Transfer Module, XHM229 Desktop Power Supply Module, XH-M229 Desktop Power Supply Module.

Features:

• Model: XH – M229
• Compatible with the port: ATX (compatible with partial BTX type)
• The PIN number: 24 pin
• Switch: Yes
• Number of sets of output: Four sets of different voltage

Features/Specs:

• Model: XH-M229
• Input: 24 Pin ATX motherboard power supply connector
• Output: -12VDC, +12VDC, +5VDC, +3.3VDC
• Onboard Fuse: Fuse on each output
• Standard 24 pin motherboard power connector at the input.
• Four separate output with fuse
• Onboard ON/OFF switch
• Good Quality
• Length: 135 mm
• Width: 50 mm
• Height: 25 mm
• Weight: 68 mm

Package Includes:

• 1 x XH-M229 Desktop PC ATX Power Supply Transfer Module
