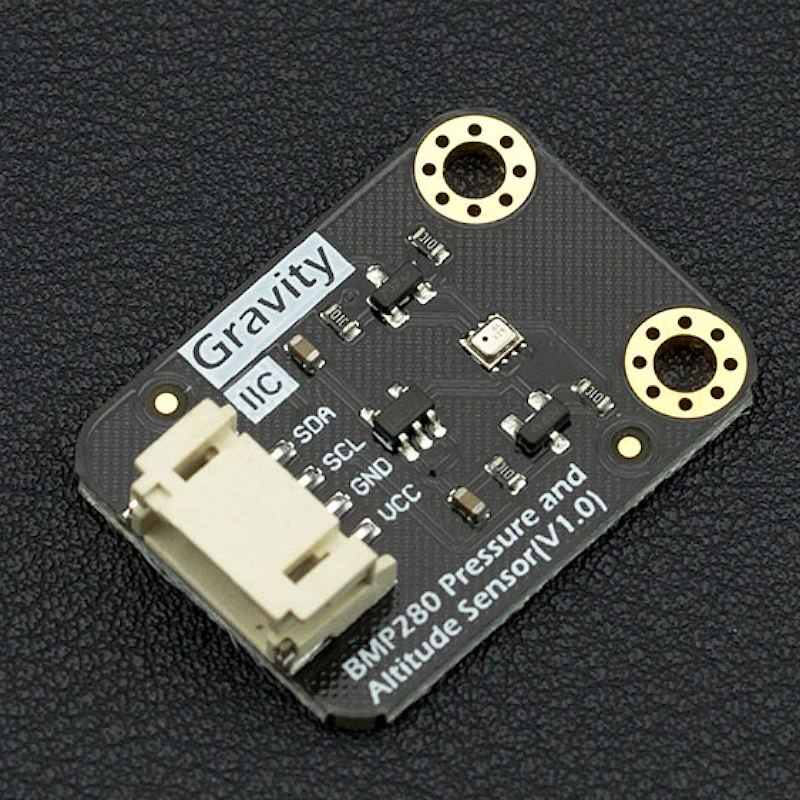

SENSOR DE PRESSÃO BAROMÉTRICA I2C BMP280

: SEN12009
7,90 €
preço com IVA incluído

Este sensor consegue detetar temperatura, altitute e pressão barométrica. É ainda compatível com Arduino. Comparado com versões anteriores desde sensor, esta nova versão possui um menor consumo de energia, maior resolução e maior frequência de frequência de amostragem.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.

NOTA: Este produto já foi descontinuado, consulte aqui a sua versão mais recente.

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

DFRobot presents our new BMP280 barometer sensor. It can detect air pressure, temperature and altitude and is Arduino compatible. Compared to the last generation BMP180 barometer sensor, it has a lower power consumption, higher resolution and higher sampling frequency.

Normally, a barometric pressure sensor is used to measure air pressure and temperature. This module can also measure altitude and story height. With the added combination of an IMU sensor, it also includes GPS navigation for three-dimensional (3D) indoor navigation.

The BMP280 barometer sensor is based on Bosch Piezo-resistive pressure sensor technology. It has high EMC robustness, high accuracy and long term stability. The relative accuracy is ±0.12 hPa, which is equivalent to ±1 m difference in altitude. The operating temperature range for long term stability is 0 ~65 ℃.

Note: Since the sensor is very sensitive, please DO NOT touch the chip.



Project 1: Environmental Monitoring System Based on OBLOQ-IoT Module
This product is mainly applied in electronic laboratory to monitor and control indicators such as temperature, humidity, light and dust, and timely upload them to the cloud data space to achieve remote monitoring and control of dehumidifier, air purifier, exhaust fan and dimmable light, etc. in the laboratory.

Hardware List:

  1. Arduino Compatible

  2. Gravity: UART OBLOQ – IOT Module (Microsoft Azure)

  3. DHT22 Temperature and Humidity Sensor

  4. Sharp GP2Y1010AU0F Compact optical Dust Sensor

  5. Gravity: i2C BMP280 Barometer Sensor

  6. Gravity: Analog Ambient Light Sensor For Arduino

  7. LCD12864 Shield for Arduino

  8. Quadruple relay module



Applications

  1. Enahnced GPS navigation (e.g. time-to-first-fix improvement, dead-reckoning, slope detection)

  2. Indoor navigation (floor detection, elevator detection)

  3. Outdoor navigation, leisure and sports applications

  4. Weather forecast

  5. Health care applications (e.g. spirometry)

  6. Vertical velocity indication (e.g. rise/sink speed)



Specification

  1. Operating Voltage: 3.3V/5V

  2. Operating Current: 2.7µA @ 1 Hz sampling frequency

  3. Pressure Measurement Range: 300 ~ 1100 hPa (equivalent to +9000…-500 m above/below sea level)

  4. Relative Accuracy: ±0.12 hPa, equiv. to ±1 m (@25℃)

  5. Temperature Measurement Range: 0 ~65 ℃

  6. Temperature Accuracy: 0.01℃

  7. Operating Temperature range: ：-40℃~+85℃

  8. Dimensions: 30 x 22mm/ 1.18 x 0.87”

  9. Interface: Gravity-I2C 4pin

  10. Weight: 12g



Documents



Shipping List

  1. Gravity: i2C BMP280 Barometer Sensor x1

  2. Gravity I2C 4-Pin Cable x1
