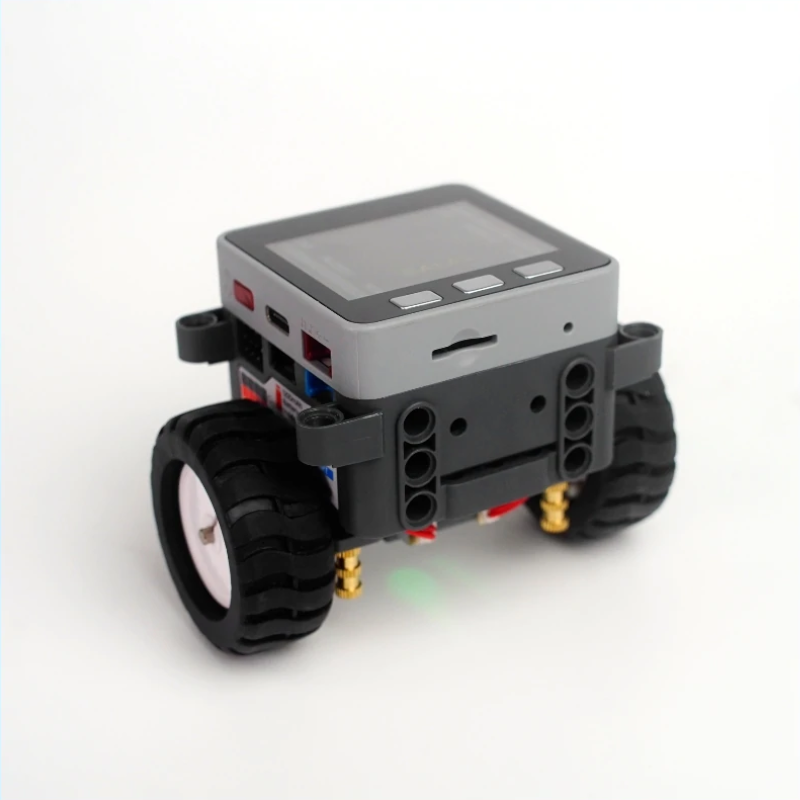

M5Stack BALA2 - Robô completo de auto balanceamento ESP32

: ROB03061
89,00 €
preço com IVA incluído

BALA2 é um robô completo de auto balanceamento baseado no controlador ESP-32, é composto por duas rodas, dois motores DC com encoder, driver de motor, uma bateria interna de 1200mAh, sensor IMU 9DOF e um software pré-caregado com controlo PID que é responsavel pelo balanceamento do BALA2. Podes programar este robô para ele fazer o que quiseres através de Python, Arduino ou UIFlow. O BALA2 pode ainda ser controlado pelo teu smartphone.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

BALA2 is short for 'Balance', as its name suggests, it is the second generation of M5Stacks balancing robot series. BALA2 is a Self Balancing Robot consisting of am M5Stack Gray and two wheels(DC motors).The base uses STM32F030C8T6 as the main control and has a two-way encoding motor driver and built-in 1200mAh battery.
This robotics product comes with preloaded software. A self-balancing robot application which balances the robot vertically using a closed-loop algorithm. You can program it to automatically move around through programming, or you can combine WiFi and Bluetooth to develop remote control functions.
This Robot is controllable by a Smartphone device or a Transmitter. The BALA2 base contains a wealth of interfaces. In addition to the conventional PortB and PortC, it also supports 8-channel servos, of which 4 channels can be directly connected, and the remaining 4 channels need to be connected from the inside of the base. Even if you have never attempted such a balancing robot program, you can quickly get the hang of it and control it through UIFlow. The self balancing robot uses data from the Accelerometer and Gyroscope to correct its orientation and position.The 2 DC driver module communicates with M5Stack Gray through I2C(0x3A).



Product Features

  1. 9-DOF IMU
  2. Two-wheel drive, PID control balance
  3. Grove extension ports
  4. 8-channel servo drive, 4-channel external connection, 4-channel built-in
  5. Support WiFi/Bluetooth, programmable
  6. Built-in speaker
  7. TF Card Support
  8. LEGO™ Compatible
  9. Programming Support
    1. Python
    2. UIFlow (Blockly)
    3. Arduino



Include

  1. 1x M5Stack Gray + BALA2
  2. 4x Wheel conncetor
  3. 2x HY2.0-4P Cables(20cm)
  4. 2x Bricks
  5. 1x HEX KEY
  6. Type-C USB Cable(120cm)



Applications

  1. Balancing car



Usage and Sensor calibration

Note: BALA2 has been calibrated , and it can automatically maintain its balance after turning it on. For manual calibration, please refer to Quick Start



Specification

ResourcesParameter
ESP32 240MHz Dual Core,600 DMIPS,520KB SRAM,Wi-Fi,Dual-mode Bluetooth
Flash/RAM 16MB Flash
LCD 2.0 inch, 320x240 Color TFT LCD, ILI9342C
Speaker 1W-0928
MEMS BMM150+MPU6886
Motor Driver HR8833
Base Controller STM32F030C8T6
Ports GROVE I2C*1/UART*1/GPIO*1/SERVO*4(+4 Extendable Channel)
Battery Capacity 1200mAh
Net Weight 157g
Gross Weight 337g
Product Size 54*54*65*mm
Package dimensions           100*100*100mm
Case Material Plastic
ROB03061
