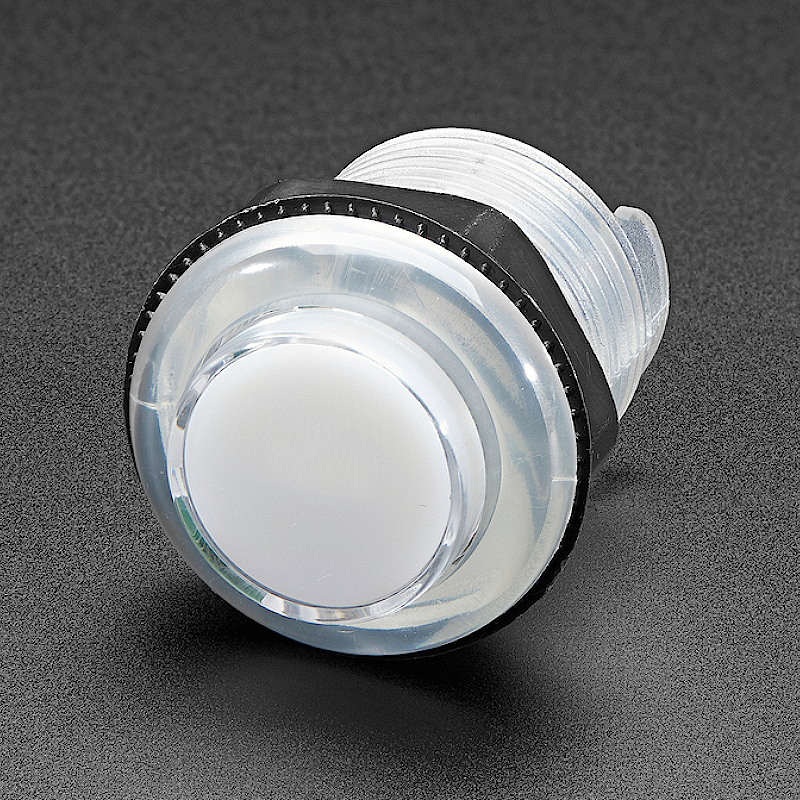

Botão Redondo 30mm c/ Iluminação LED RGB 5V

:CEL10165
3,50 €
preço com IVA incluído

Um botão é um botão e um interruptor é um interruptor, mas estes botões de arcade translúcidos pertencem a uma classe própria. Principalmente porque têm LEDs incorporados! É isso mesmo, estará a carregar em botões no meio de uma bela luz com estes pequeninos. Têm o mesmo tamanho dos comandos comuns de arcade em miniatura e requerem um orifício de 30 mm de diâmetro para a sua montagem. Por isso, por vezes são chamados de diâmetro de 30 mm.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

The buttons screw in place, so you can use with up to ~20mm thick material, and will cover up if the hole if it isn't perfectly round and clean. The action is smooth, without a strong click, yet you can definitely feel when the button is pressed. A tiny micro-switch is pre-installed, with gold plated contacts.

Even unlit, they look fantastic: all of the colors have a crystal translucent glossy look. As noted they have two surface mount LEDs with resistors built-in, buried in the button body. Next to the switch contacts are two additional contacts for powering/controlling the LEDs. The two LEDs are connected in parallel with a 200ohm resistor, so you can power the LED from a microcontroller pin or direct from 5V (say USB) with 10mA draw. You can go down to 3.3V power, only 2mA per button, but they'll be dimmer.



CEL10165
