LCD12864-ST (3.3V Luz fundo AZUL)
  • LCD12864-ST (3.3V Luz fundo AZUL)
  • LCD12864-ST (3.3V Luz fundo AZUL)
  • LCD12864-ST (3.3V Luz fundo AZUL)

LCD12864-ST (3.3V Luz fundo AZUL)

: LCD01066
14,95 €
preço com IVA incluído
Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



Features

Display construction 128*64 DOTS
Display mode TN/STN
Display type Positive Transflective
Backlight LED, 5.0V
Viewing direction 6 o'clock
Operating temperature Indoor
Driving voltage Single power
Driving method 1/33 duty,1/6 bias
Type COB (Chip On Board)
Number of data line 8-bit parallel
Connector Pin / ZEBRA



Key Parameters

Driver IC ST7920 / ST7921
Interface Parallel / SPI
Backlight Blue
Character Color White
Character Set ASCII
Dimension 93 * 70 * 13.5

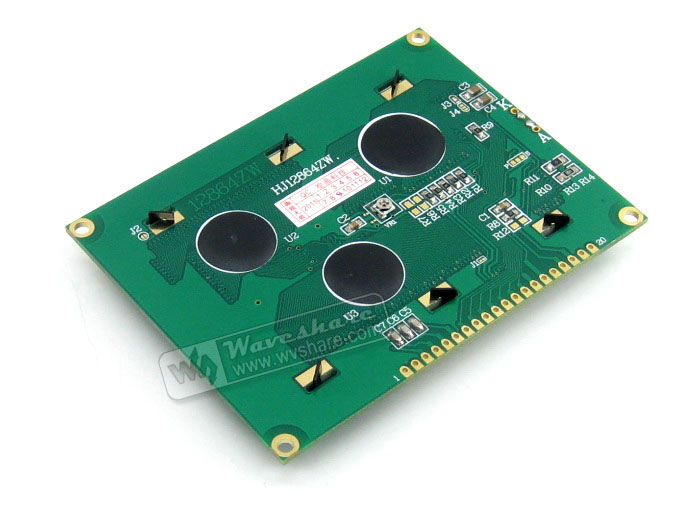

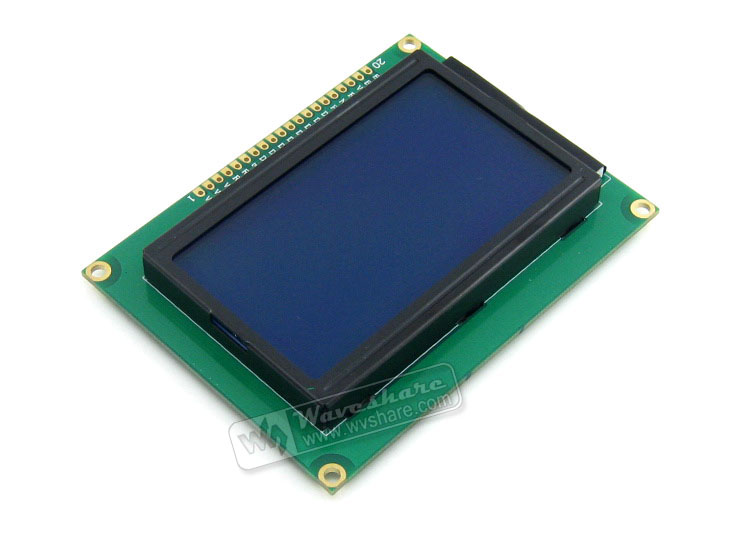

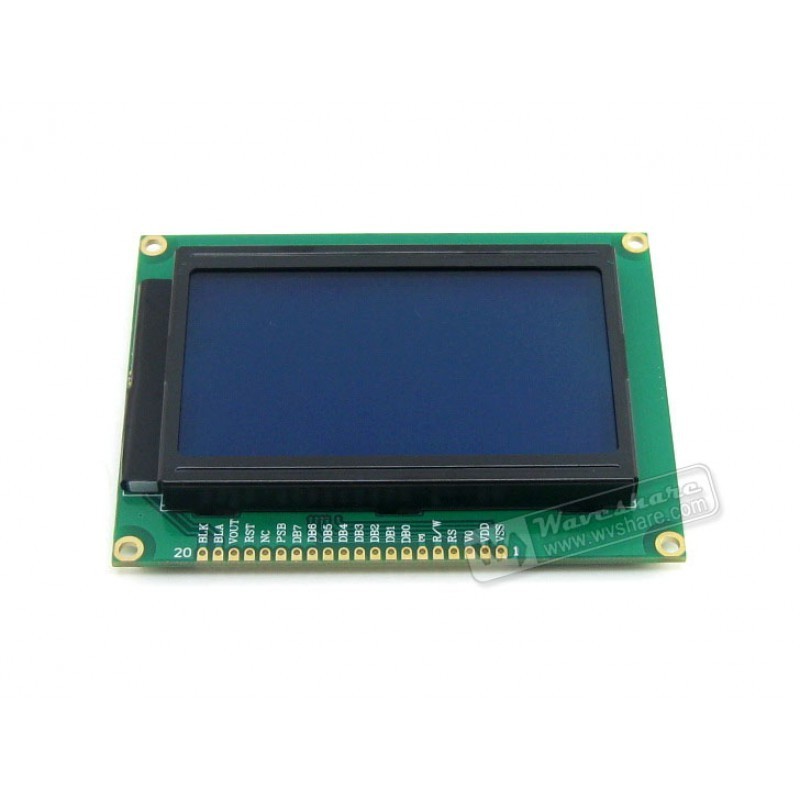

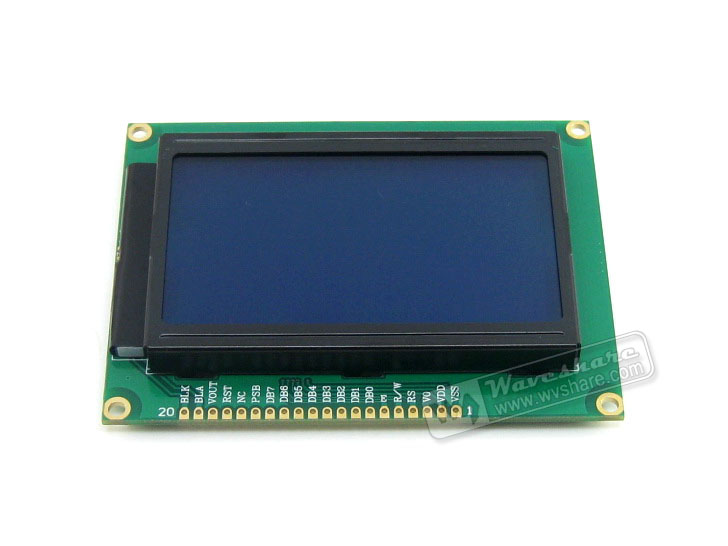

Photos





Interface

PIN NO.SYMBOLDESCRIPTIONFUNCTION
1 VSS Ground 0V (GND)
2 VDD Power Supply For Logic Circuit +3.3V
3 V0 LCD Contrast Adjustment
4 RS or CS Parallel Mode:
Instruction/Data Register Selection
Serial Mode:
Chip Select		 Parallel Mode:
RS = 0 : Instruction Register
RS = 1 : Data Register
Serial Mode:
Active-high
5 R/W or SID Parallel Mode:
Read/Write Selection
Serial Mode:
Data		 Parallel Mode:
R/W = 0 : Register Write
R/W = 1 : Register Read
6 E or SCK Parallel Mode:
Enable Signal
Serial Mode:
Clock		 Parallel Mode:
Active-high
7 DB0 Parallel Mode:
Data Bus
Serial Mode:
NC		 Parallel Mode:
DB0-DB7
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 PSB Serial/Parallel Selection PSB=0 : Serial Mode
PSB=1 : 8/4Bit Parallel Bus Mode
16 NC
17 RST Reset Signal Active-low
RSTB=0,Display Off, Display From Line 0
18 Vout Dual Voltage Output Available when VDD＝+3.3V
19 A Supply Voltage For LED+ +3.3V
20 K Supply Voltage For LED- 0V

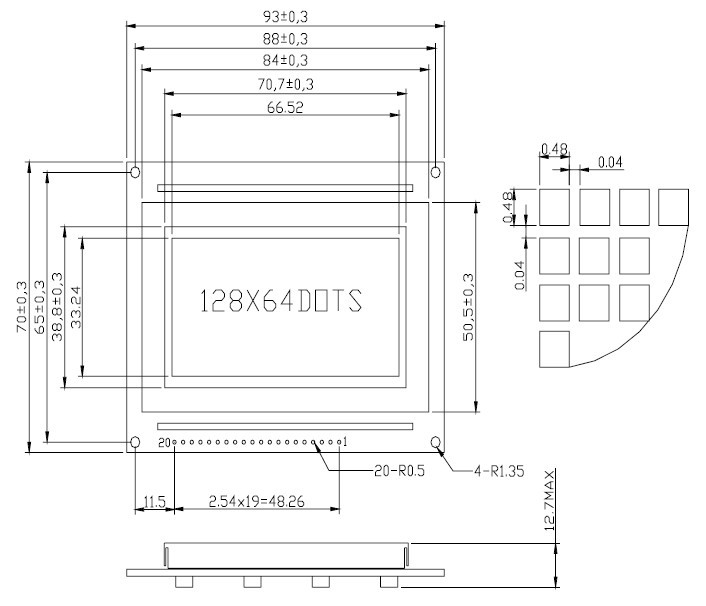

External Dimension

LCD12864-ST external dimension



Datasheet Download

ST7920.pdf
ST7921.pdf
