Acoplador mecânico 5mm/10mm

: CME04026
5,90 €
preço com IVA incluído

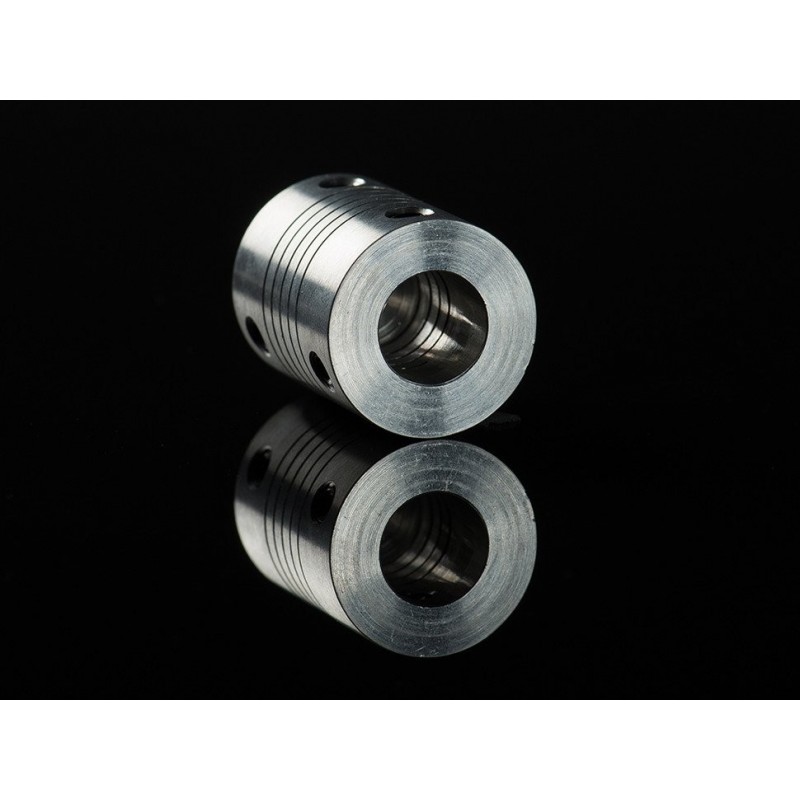

Estes acopladores são feitos de alumínio maquinado. Têm um corte em espiral que os torna ligeiramente flexíveis de forma a resolver pequenos desalinhamentos entre o eixo da máquina e do motor ou encoder.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

Connect this to that with a set-screw coupler. These couplers are made of machined aluminum and have a spiral cut that makes them slightly flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects. The way they're cut, they're a little springy in the X Y & Z linear axis but not in the rotational axis. That means that you won't get increased backlash - so they're suitable for precision CNC work.

This coupler will connect a 5mm diameter shaft to a 10mm diameter shaft. A perfect add on for our stepper motors. Comes with two sets of double set-screws (two per side) for secure attachment. You'll need a 2mm allen wrench to tighten/loosen the set-screws.

Aluminum Flex Shaft Coupler 5mm to 10mm (0:26)

Technical Details

  • Outer Diameter: 20mm / 0.8"
  • Inner Diameter (wide side): 10mm / 0.4"
  • Inner Diameter (small side): 5mm / 0.2"
  • 15 grams
CME04026
