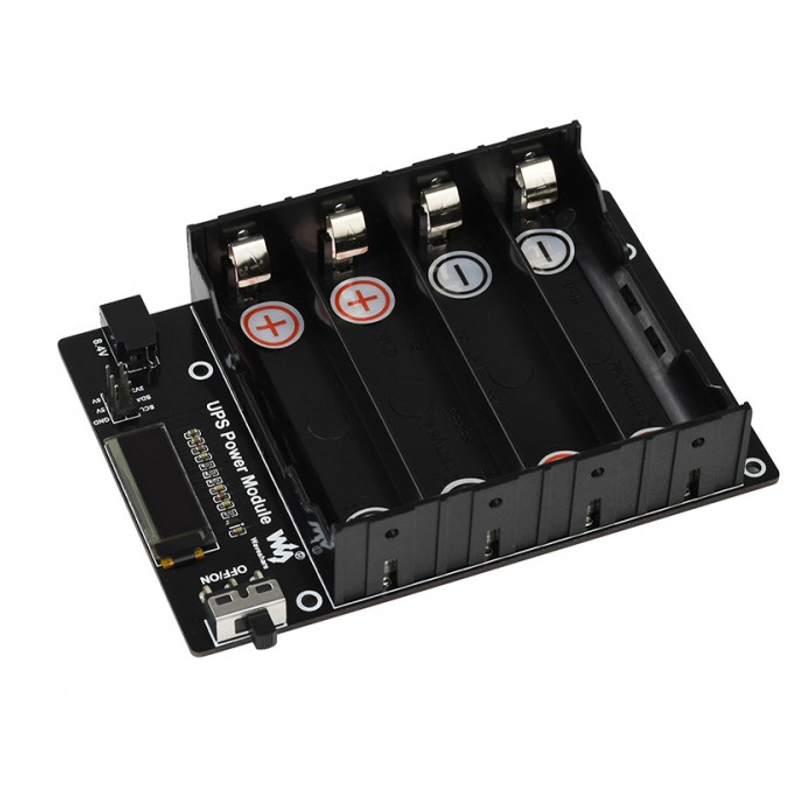

UPS c/ Suporte 4 Baterias 18650 para Jetson Nano - Saída 5V

: BAT04028
20,95 €
preço com IVA incluído

Esta é uma unidade de alimentação constante para Jetson Nano. Fornece energia ao teu Jetson Nano e permite que este seja usado equanto estiver em movimente ou quando outra fonte de energia falhar. Este UPS tem espaço para 4 baterias 18650, um display de 0.91" que mostra os valores atuais da bateria, tensão e etc.

Este produto já traz um carregador de 8.4V e um cabo para conseguires ligar o teu modelo ao Jetson Nano. Só precisas do Jetson Nano e das pilhas 18650.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

UPS Power Module for Jetson Nano, 5V Uninterruptible Power Supply, Multi Battery Protection Circuits

Uninterruptible Power Supply for Jetson Nano

Power Jetson Nano seamlessly from power connection OR the backup batteries

Stable 5V Output, Real Time OLED Monitor



Features at a glance

  1. I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
  2. 0.91" OLED for displaying info like batteries voltage, IP address, RAM usage, etc.
  3. Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
  4. Onboard 5V regulator, up to 2.5A continuous output current
  5. Batteries warning indicators, easy to check if the battery is connected correctly
  6. Comes with development resources and manual

Specifications

Output voltage 5V Charger 8.4V 2A
Control bus I2C Dimensions 113 × 79mm
Battery support 18650 Li battery (NOT included) Mounting hole size 2.5mm

Uninterruptible Power

It is able to charge the batteries and provide power output at the same time from external power supply
Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble



Designed for Jetson Nano Developer Kit

Mounting holes are compatible with Jetson Nano Developer Kit
Communicating via I2C bus through 6PIN cable, no other IO pin required


Real time monitoring

0.91" OLED for monitoring batteries voltage, current, power, remaining capacity...

When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss


Safe and stable circuit design

Protection circuits for over charge/discharge, over current, short circuit, and reverse
along with the equalizing charge feature, more safe and stable

Longer battery life

Supports 4x 18650 batteries


Outline dimensions

Resources & Services


* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.



Package Content

Weight: 0.191 kg

  • The 18650 batteries are NOT included
  • Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more
  1. UPS Power Module x1
  2. 8.4V battery charger x1
  3. 6PIN 9cm cable x1
  4. Screws pack x1
