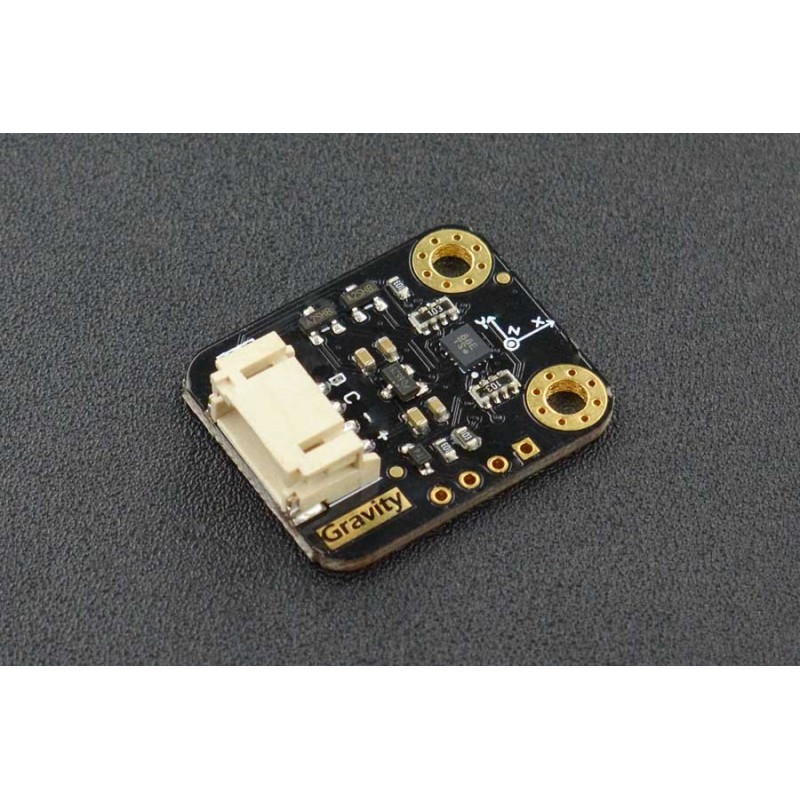

Gravity: I2C BMI160 Sensor inercial de 6-eixos

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

INTRODUCTION

The BMI160 6-axis inertial motion sensor is a new product from DFRobot. It is based on Bosch BMI160 6-axis MEMS sensor which integrates 16-bit 3-axis accelerometer with ultra-low-power 3-axis gyroscope. Bosch BMI160 is designed for smartphones, tablets, wearable devices. It has built-in intelligent step-counting algorithms that can be read directly through registers. Built-in 3-axis acceleration and 3-axis gyroscope can detect running, fitness and other motion. Built-in LDO power management chip, supports 3.2~6V wide voltage power supply, and also has I2C level conversion circuit, compatible with Arduino 3.3V and 5V micro controller.

FEATURES

• Step Count
• Acceleration Detection
• Inclination Measurement
• Display Toggle Horizontal / Vertical Mode

SPECIFICATION

• Operating Voltage: 3.2V~6V
• Current Consumption: <1mA
• Interface: Gravity-IIC
• Acceleration Range: ±2g/±4g/±8g/±16g
• Gyroscopes Range: ±125°/s,±250°/s,±500°/s,±1000°/s,±2000°/s
• Acceleration Zero-g Offset: ±40mg
• Gyroscopes Zero-g Offset: ±10°/s
• Programmable Frequency: 25/32Hz~1600Hz
• 6D Detection and Location
• 16-bit Data Output
• Shock Resistance: 1000gx 200us
• 2 Independent Programmable Interrupt Generators
• In-built 1024 Byte FIFO
• Working Temperature:-40℃~+85℃
• Dimension: 22X27mm/0.87x1.06 in

DOCUMENTS

• Product wiki
• More Documents

SHIPPING LIST

• Gravity: I2C BMI160 6-axis IMU x1
• Gravity IIC/UART sensor cable x1
• XH2.54 Single Row Pin Header-4P x1
