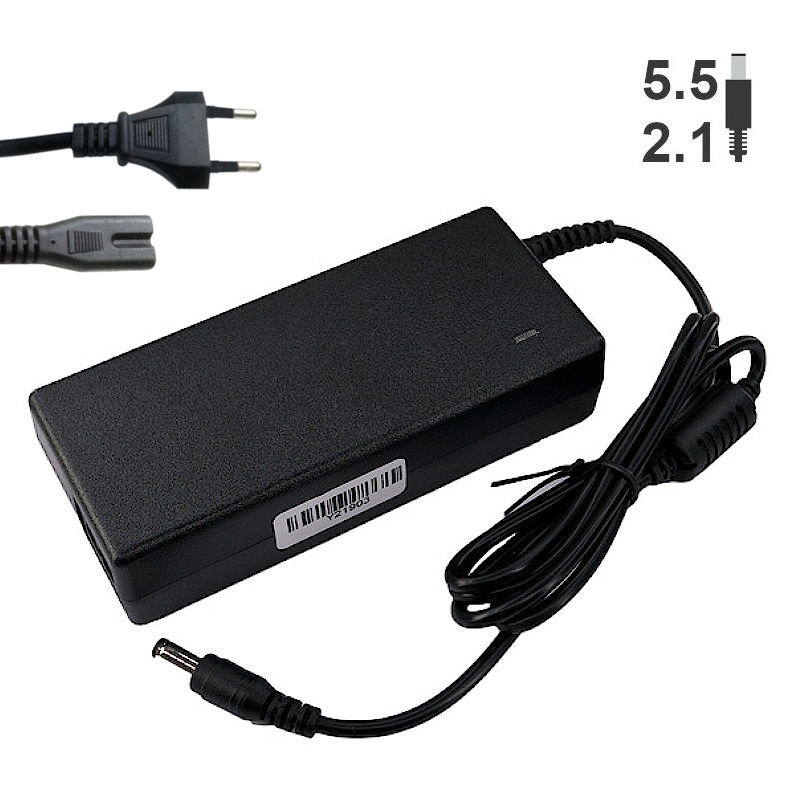

Fonte de Alimentação AC/DC 24V 3.5A

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description:

OUTPUT

1. Rated Voltage: 24V

2. Rated Current: 3.5A

3. Rated Power: 84W

4. Line Regulation: ± 2%

5. Load Regulation: ± 5%

6. Tolerance [3]: ± 5%

7. Ripple & Noise (max.) [2]: 480mVP-P

8. Setup, Rise Time [4]: 1000ms, 10 ms / 230VAC at full load

9. Hold up Time: 50 ms / 230VAC at full load

INPUT

1. Voltage Range: 90 ÷ 264VAC

2. Frequency Range: 47 ÷ 63Hz

3. Efficiency (typ.): 85%

4. AC Current (typ.): 1.3 A / 115VAC, 0.60 A / 230VAC

PROTECTIONS

1. Overload:
   1. Range: 110 ÷ 150% rated current
   2. Type: hiccup mode, auto-recovery.
2. Short Circuit: Type: hiccup mode, auto-recovery.
3. Over voltage:
   1. 18 ÷ 25VDC
   2. Type: shut down output voltage. Re-power on to recovery.

Documents:

FAL07003_datasheet
