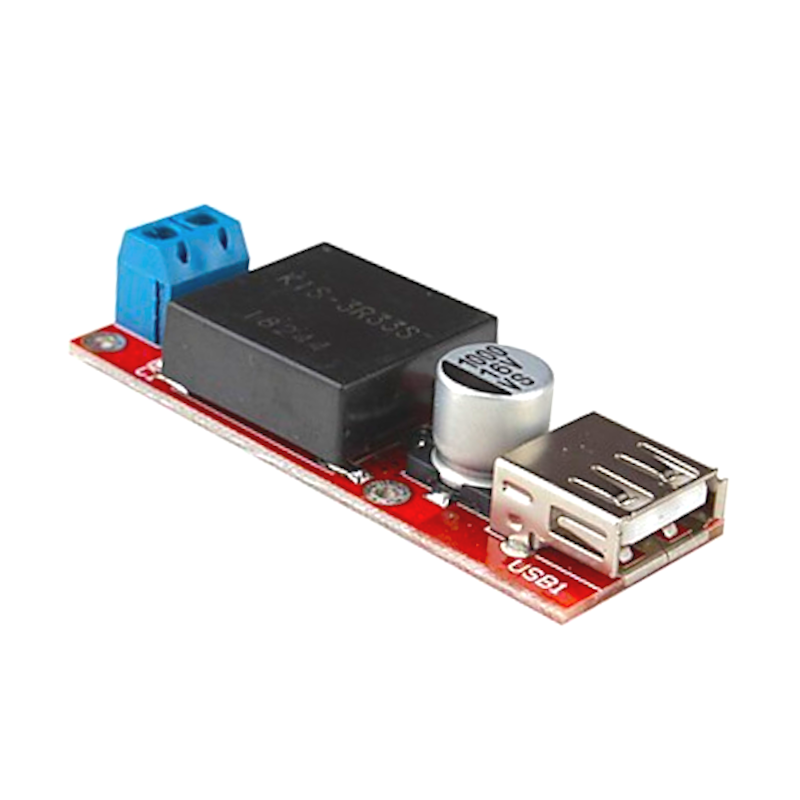

• DC 7-24V to DC 5V USB Voltage Power Converter
  • DC 7-24V to DC 5V USB Voltage Power Converter
  • DC 7-24V to DC 5V USB Voltage Power Converter
  • DC 7-24V to DC 5V USB Voltage Power Converter

Step-Down 7-24V para USB 5V 3A

: FAL01036
5,90 €
preço com IVA incluído
Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

Description:

  • Rectification: Synchronous rectification
  • Input voltage: DC 7-24V
  • Output voltage: DC 5V
  • Output current: 4A(Spike/Short time), Continuous Current 3A (max)
  • Conversion efficiency: 96% (MAX)
  • Switching frequency: 340KHz
  • Output ripple: 30mV (max)
  • Load regulation: ± 0.5%
  • Voltage regulation: ± 2.5%
  • Operating Temperature: -40 ° C to +85 ° C
  • With Short-circuit Protection: 5A short-circuit

Specifications

Color Red
Material Mixed Material
Dimensions (cm) 6.2 x 2.1 x 0.8
Weight (kg) 0.015
FAL01036
