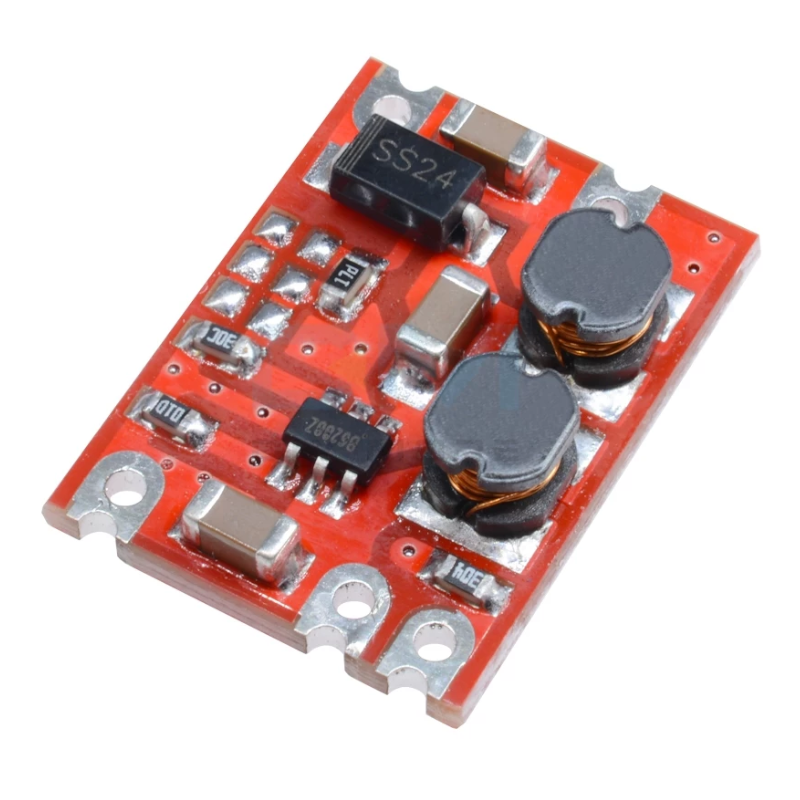

Conversor DC-DC Step up / Down 2.5~15V para 5.0V 600mA

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Application:

Widely used in communications equipment, digital radio, industrial motherboards, toys, model aircraft, microcontroller motherboards, household electrical appliances, automotive power supply, security monitoring, field collection, street lamps.


Specifications:

1. input voltage:2.5V-15V

2. output voltage:5V

3. output current:0.6A

4. conversion efficiency:75%

5. output ripple:<50mV

6. output accuracy:+-0.1V

7. working temperature:-20 - +85 celsius

8. relative humidity:20-90%

9. size:19*14*4mm

10. pcb thickness:1.2mm

11. pcb layers:2 layers

12. current control:with cut off

13. cooling method:cooling nature

14. installation method:SMD or 2.54mm pin

15. production process:reflow

16. isolated:no

17. design aging standards:720 hours without trouble

18. production factory aging standards:48 hours

19. service life:35000 hours without trouble

20. factory inspection standards 3 times:all(factory/aging/out of library test)

21. fixed switching frequency:1200khz
