• Novo

Ecrã tátil capacitivo 5.5 polegadas 2k HDMI Interface IPS 1440×2560 c/ caixa p/ Raspberry Pi - Waveshare 23113

: LCD01170
84,90 €
preço com IVA incluído

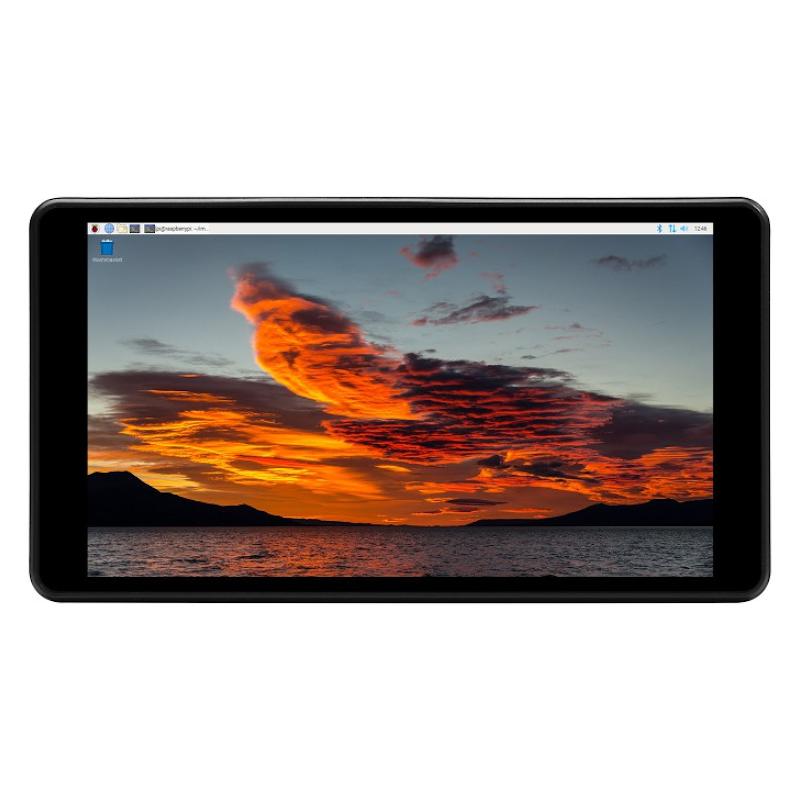

Este display da Waveshare de 5,5 polegadas oferece uma resolução de 1440×2560 pixels, tecnologia IPS para ângulos de visão amplos de 170° e suporte a toque capacitivo de 10 pontos. Possui interface HDMI para vídeo e USB para toque. É compatível com Raspberry Pi e PCs com Windows. ​Para além disso, este display conta ainda com uma caixa protetora em acrílico.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.

Quantidade
Sem Stock


Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

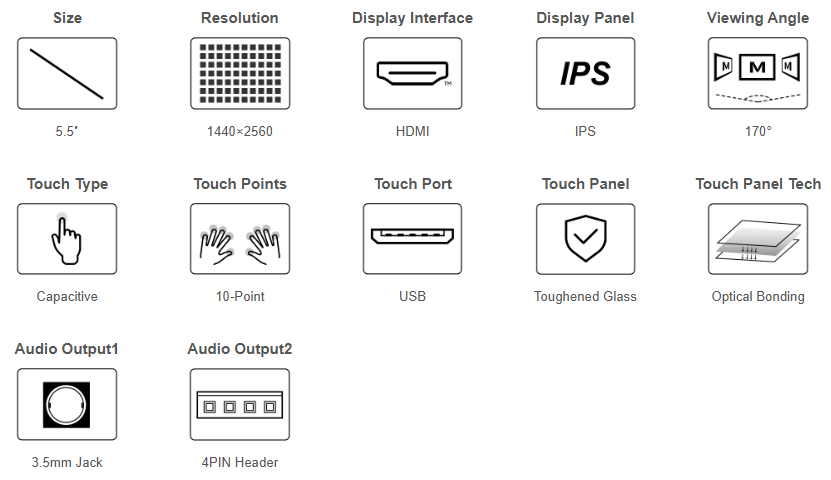

5.5″ 2K Touch Display

High Resolution | Multi-touch | Full Color

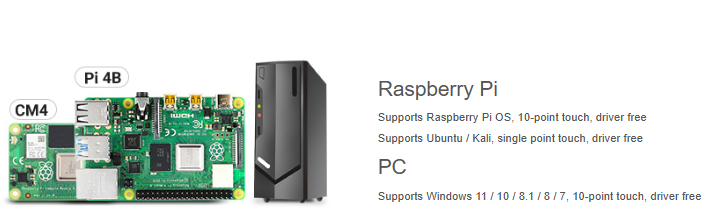

Device & System Support

  1. For the moment, only the Raspberry Pi 4B and CM4 have adequate CPU performance to drive this 2K display completely.

  2. Support more powerful future versions as long as its GPU performance is equivalent to or better than the Pi 4B.

  3. Limited by the hardware, when working with Raspberry Pi 3B+/Pi 3B/Zero 2w/Zero w, only supports default portrait display and cannot be rotated.

  4. The case only supports Raspberry Pi 4B.



Connection Examples

Working with Raspberry Pi 4B



The display only




The display with case




Working with Compute Module 4




Working with mini PC


NOTE: for reference only, Raspberry Pi 4B and CM4 are not included



IPS Display Panel

Excellent Display & Color Performance




2K High Resolution

1440 x 2560 Pixels
Optical bonding, dust-proof and clearer display




Capacitive 10-point Touch

Support 10-point touch, the actual number of touch points is related
to the software and system
Toughened glass panel, hardness up to 6H




Interface Introduction




Dimensions

the display only


the display with case




Support touch screen customization

Support the following ways to customize the touch screen display in bulk order




Resources & Services


Wiki: www.waveshare.com/wiki/5.5inch_1440x2560_LCD



Package Content

Weight: 0.173 kg

  1. 5.5inch 1440x2560 LCD x1

  2. Black ABS case x1

  3. Cooling fan x1

  4. HDMI to Micro HDMI adapter (C) x1

  5. USB adapter (D) x1

  6. Screws pack x1


LCD01170
