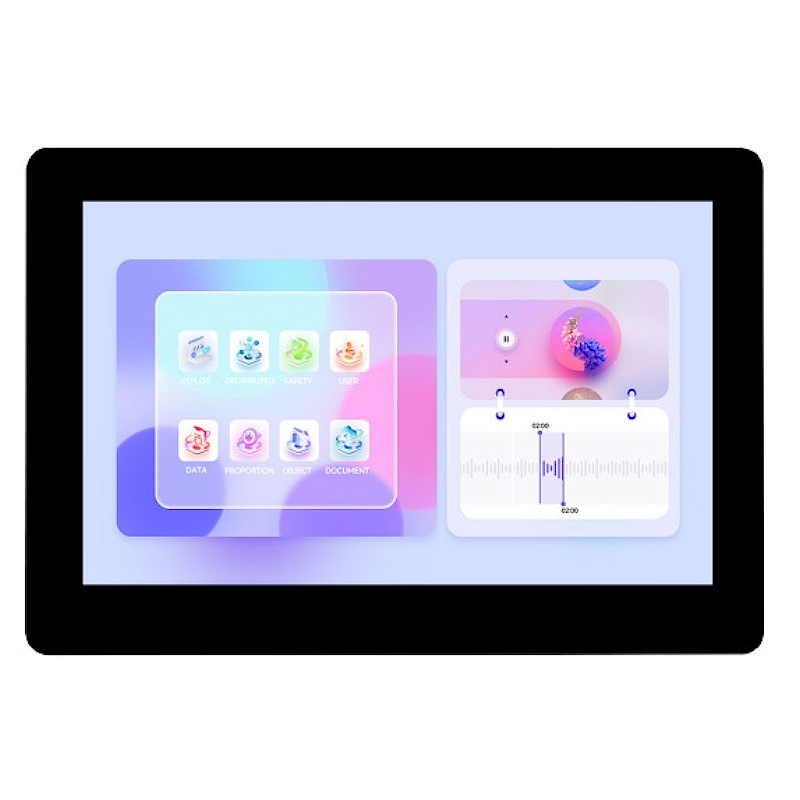

ESP32-S3 com display touch capacitivo 5inch 1024x600 IPS Waveshare 28151

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

ESP32-S3 5″ LCD Development Board

Integrates RGB interface LCD and 5-point capacitive touch (optional)

Features

This product is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 5inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

1. Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

3. Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

4. Onboard 5inch LCD display, options for 800×480/1024x600 resolution, 65K color

5. Supports capacitive touch control via I2C interface, 5-point touch with interrupt support (for touch version only)

6. Onboard voltage regulator, supports 7~36V wide range power supply

7. Onboard RTC chip and rechargeable battery to ensure time data is not lost when power loss

8. Onboard CAN, RS485, I2C interface, TF card slot, MX1.25 2P battery header, and digital isolated IO interfaces, etc.

9. Supports passive and active digital input, with bi-directional optocoupler isolation

10. Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current

11. Onboard LED indicators for indicating the power and battery recharging status

12. Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios

Application Scenarios

IPS Display Panel

Excellent display performance, 178° wide viewing angle *

Capacitive 5-point touch

Optional for touch function via I2C interface, supports 5-point touch for flexible operation and smooth multi-point UI interaction

Supports multiple peripherals

Supports the expansion of multiple peripherals via CAN, RS485, I2C and isolated IO interfaces

What's On Board

1. ESP32-S3-WROOM-1-N16R8
   The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and 16MB Flash
2. TF card slot
3. USB Type-C port
4. BOOT button
   Press and hold while powering on for program burning
5. RESET button
6. Optocoupler isolation
7. Touch panel connector
8. 5inch display panel connector
9. RS485 and CAN terminal resistors selection
   close by default
10. Battery power supply ON/OFF
11. 3.7V single lithium battery GH1.25 header
12. Status Indicators
    DONE: Lithium battery charging completed indicator
    CHG: Lithium battery charging indicator
    PWR: Power supply indicator
    (the CHG will blink and DONE will light on when connecting with DC power supply and without lithium battery connected or battery switch is OFF)
13. 7-36V DC power supply terminal
14. I2C interface terminal
    VOUT pin output 5V/3.3V (switching by onboard resistor)
15. CAN interface terminal
16. RS485 interface terminal
17. Digital output
    5~36V, open-drain output, output load: 450mA per channel (MAX)
18. Input signal common terminal
    NC: dry contact passive input
    Connect to power supply positive: digital input low active, for NPN wet contact active input, 5V-36V DC
    Connect to power supply negative: digital input high active, for PNP dry contact active input, 5V-36V DC
19. Digital input
    5~36V, supports passive / active input (NPN or PNP)
20. I2C VOUT output selection
    for switching output valtage and I/O level of I2C VOUT, 3.3V by default

21. CS8501
    Lithium battery recharge manager
22. PCF85063
    RTC chip for providing accurate time control
23. AP3032KTR-G1
    Display backlight boost converter
24. CH422G
    IO expansion chip
25. SP3485
    RS485 transceiver
26. TJA1051T/3/1J
    CAN transceiver
27. SGM2212-3.3
    800mA low-noise LDO
28. Rechargeable Lithium battery

Support Batch Customization

Support software and hardware customization - Including hardware interface, LOGO, label, case and web page, etc.

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-S3-Touch-LCD-5

Package Content

Weight: 0.144 kg
