DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.
Features
- Designed for Raspberry Pi, an ideal alternative solution for HDMI monitor
- Supports any revision of Raspberry Pi (directly-pluggable)
- Driver provided (works with custom Raspbian directly)
- IPS technology, high quality and perfect displaying from very wide viewing angle
- 320×480 resolution
- Convenient Men-Machine interface for Raspberry Pi, combined with the portable power, DIY anywhere anytime
- Supports Raspbian system, enables your system to:
- Take photos by touching (up to 17 camera modes)
- Support software keyboard (system interaction without keyboard/mouse)
Key Parameters
|
LCD Type
|
TFT
|
|---|
|
LCD Interface
|
SPI
|
|---|
|
Touch Screen Type
|
Resistive
|
|---|
|
Touch Screen Controller
|
XPT2046
|
|---|
|
Colors
|
65536
|
|---|
|
Backlight
|
LED
|
|---|
|
Resolution
|
320*480 (Pixel)
|
|---|
|
Aspect Ratio
|
8:5
|
|---|
|
Power Consumption
|
TBD
|
|---|
|
Backlight Current
|
TBD
|
|---|
|
Operating Temp. (℃)
|
TBD
|
|---|

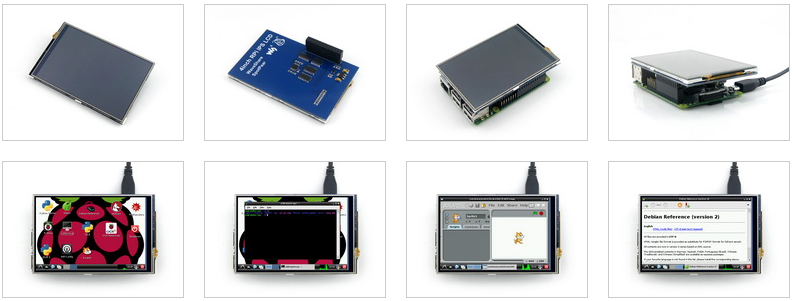

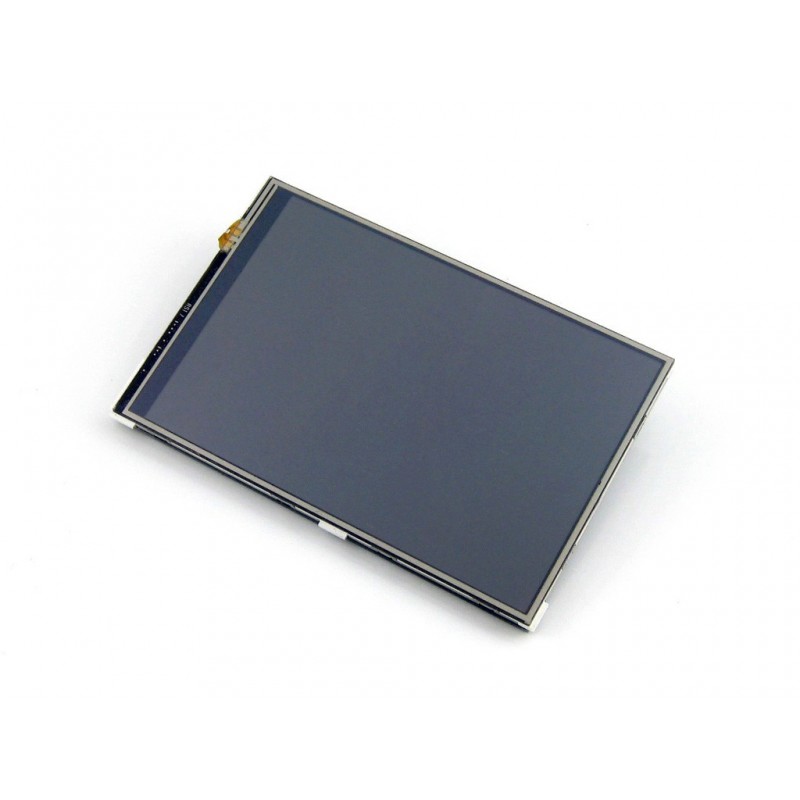

Photos
Interface
|
PIN NO.
|
SYMBOL
|
DESCRIPTION
|
|---|
|
1, 17
|
3.3V
|
Power positive (3.3V power input)
|
|
2, 4
|
5V
|
Power positive (5V power input)
|
|
3, 5, 7, 8, 10, 12, 13, 15, 16
|
NC
|
NC
|
|
6, 9, 14, 20, 25
|
GND
|
Ground
|
|
11
|
TP_IRQ
|
Touch Panel interrupt, low level while the Touch Panel detects touching
|
|
18
|
LCD_RS
|
Instruction/Data Register selection
|
|
19
|
LCD_SI / TP_SI
|
SPI data input of LCD/Touch Panel
|
|
21
|
TP_SO
|
SPI data output of Touch Panel
|
|
22
|
RST
|
Reset
|
|
23
|
LCD_SCK / TP_SCK
|
SPI clock of LCD/Touch Panel
|
|
24
|
LCD_CS
|
LCD chip selection, low active
|
|
26
|
TP_CS
|
Touch Panel chip selection, low active
|
External Dimension
Downloads
Development resources:Image, schematic, dimension, software, etc.
Download: www.waveshare.com/wiki/4inch_RPi_LCD_(A)
FAQ
- Why the LCD doesn't work with my Raspbian?
- To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly. -
- Why the LCD still doesn't work with the Waveshare provided image?
- Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact. -
- Which power supply should I use?
- It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might doesn't have enough power to support the Pi and LCD.
For more info, please check the wiki page.
Selection Guide
|
Part Number
|
Resolution
|
LCD Interface
|
Touch Panel Interface
|
Dimension (mm)
|
How you feel
|
Touch Panel Type
|
Feature
|
|---|
|
3.2inch RPi LCD (B)
|
320x240
|
I/O
|
I/O
|
As the Pi
|
★★
(indeed it displays something)
|
Resistive
|
Cheap
|
|
3.5inch RPi LCD (A)
|
320x480
|
I/O
|
I/O
|
As the Pi
|
★★★
(not bad)
|
Resistive
|
High cost performance
|
|
4inch RPi LCD (A)
|
320x480
|
I/O
|
I/O
|
95 x 61
|
★★★☆
(better enough)
|
Resistive
|
IPS screen
|
|
5inch HDMI LCD
|
800x480
|
HDMI
|
I/O
|
121 x 78
|
★★★★
(good)
|
Resistive
|
High definition
|
|
5inch HDMI LCD (B)
|
800x480
|
HDMI
|
USB
|
121 x 76
|
★★★★
(good)
|
Resistive
|
High definition, supports various systems
|
|
7inch HDMI LCD (B)
|
800x480
|
HDMI
|
USB
|
165 x 107
|
★★★★☆
(great)
|
Capacitive
|
High definition, supports various systems
|
|
7inch HDMI LCD (C)
|
1024x600
|
HDMI
|
USB
|
165 x 107
|
★★★★★
(amazing)
|
Capacitive
|
IPS screen, Ultra high definition, supports various systems
|
