• DESCONTINUADO

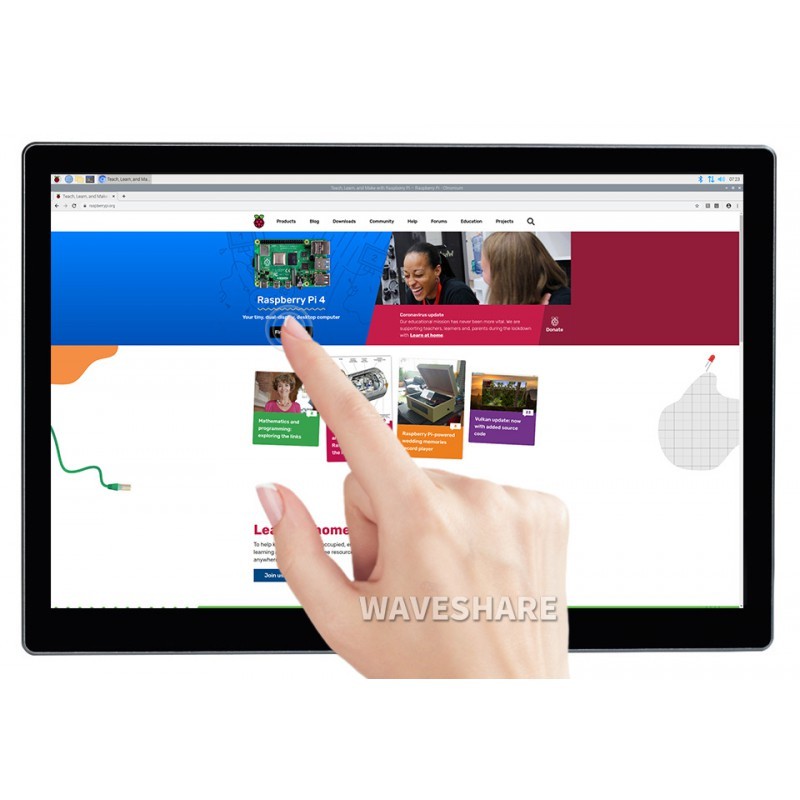

Ecrã tátil capacitivo 2K 9'' Mini HDMI , 2560×1600, IPS, Vidro Laminado

: LCD01134
139,95 €
preço com IVA incluído

Ecrã tátil capacitivo de 5,5 polegadas, 2560×1600, IPS, vidro laminado ideal para trabalhar com Raspberrry, Mini PC e Jetson Nano

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

9" 2K Touch Monitor


  • SizeDimension.png9"
  • ResolutionResolution.png2560×1600
  • Display PortMini-HDMI.pngMini HDMI
  • Display PanelIPS.pngIPS
  • Viewing AngleViewing_angle.png178°
  • Touch TypeCapacitive_touch.pngCapacitive
  • Touch PointsTen_touch.png10-Points
  • Touch PortMicro_USB.pngUSB
  • Touch PanelTempered_panel.pngToughened Glass
  • Touch Panel TechFull-Fit.pngFully Laminated
  • SoundSpeaker.pngHi-Fi Speaker
  • Audio Output3.5mm-Audio.png3.5mm Jack
  • EnclosureCNC.pngCNC Process Alloy

Device & System Support



Raspberry Pi

Supports Raspbian, 10-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi




Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 10 / 8.1 / 8 / 7, 10-points touch, driver free

Connection Examples

Working With Raspberry Pi 4


Working With Raspberry Pi 3B+


Working With Raspberry Pi Zero W


Working With AI Computer Jetson Nano


Working With Mini PC


Display Panel

IPS Panel, Up To 70% NTSC Color Gamut, Up To 350nit Brightness


2K High Resolution

2560×1600 High Resolution, Presents Distinct & Ddetailed Picture


Touch Control

Touch-Screen-Top-C10TT.jpg Touch-Screen.jpg

1) up to 10-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel. 3) fully laminated screen, better display experience, dust-proof.

Audio Feature

Audio-Top-Dual-Spk.jpg Audio.jpg

Appearance And Dimensions


Resources & Services


Wiki: www.waveshare.com/wiki/9inch_2560x1600_Monitor

Product Certification

HDMI Certified


* We are an official authorized HDMI Adopter.

Over A Decade
Waveshare Grows With Display

* Waveshare has been focusing on display design for over 10 years.

Selection Guide

PARTNUMBER DISPLAY TOUCH AUDIO DEVICE SUPPORT
RESOLU-TION DISPLAY PORT DISPLAY PANEL VIEW ANGLE TOUCH TYPE TOUCH PORT TOUGHENED GLASS PANEL FULLY LAMINATED SPE-
AKER		 SIGNAL OUTPUT PI JETSON NANO PC
SPI DISPLAYS
PROS: low price.
CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
3.2inch RPi LCD (C) 320×240 High-Speed SPI TFT – Resistive SPI × × × × √ × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × √ × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × ×
4inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × ×
DPI DISPLAYS
PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C √ √ × × √ × ×
4inch DPI LCD (B) 480×800 DPI IPS 170° Capacitive I2C √ × √ √ √ × ×
5inch DPI LCD 800×480 DPI IPS 160° × × × × × × √ × ×
7inch DPI LCD 1024×600 DPI IPS 170° × × × × × × √ × ×
DSI DISPLAYS
PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: only 800×480 resolution is available currently, supports Raspberry Pi only.
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
5inch DSI LCD 800×480 DSI TFT - Capacitive I2C √ × × × √ × ×
HDMI / TYPE-C DISPLAYS
PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: somewhat costly.
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × √ √ × Display ONLY
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × √ √ × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × √ √ √ √
5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
5inch HDMI LCD (with case) 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × √ × √
5inch HDMI LCD (B) (with case) 800×480 HDMI TFT – Resistive USB × × × × √ × √
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × √ √ × √
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB √ × × √ √ √ √
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB √ × × √ √ √ √
5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB √ × × √ √ × ×
5.5inch HDMI AMOLED (with case B) 1080×1920 HDMI AMOLED 170° Capacitive USB √ × × √ √ √ √
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
7inch HDMI LCD (B) (with case) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
7inch HDMI LCD (C) (with case) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × √ √ √ √
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × × √ √ √ √
7inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive USB √ √ √ √ √ √ √
7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
9inch 2560x1600 Monitor 2560×1600 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × √ √ √
10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB √ √ × √ √ √ √
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB √ × × × √ × √
11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ √ √ √ √ √ √
12.5inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √
13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √

Have a look :
RPi LCD Comparing

PACKAGE CONTENT

Weight: 0.621 kg

  1. 9inch 2560x1600 Monitor
  2. Mini HDMI to Micro HDMI cable
  3. Mini HDMI to HDMI cable
  4. USB-A to Micro-B cable
  5. Triangular stand


2mini-HDMI-to-micro-HDMI-cable_93.jpg3mini-HDMI-to-HDMI-cable_93.jpg4USB-type-A-plug-to-Micro-B-plug-cable_93.jpg5triangle-stand_93.jpg
