DESCRIPTION

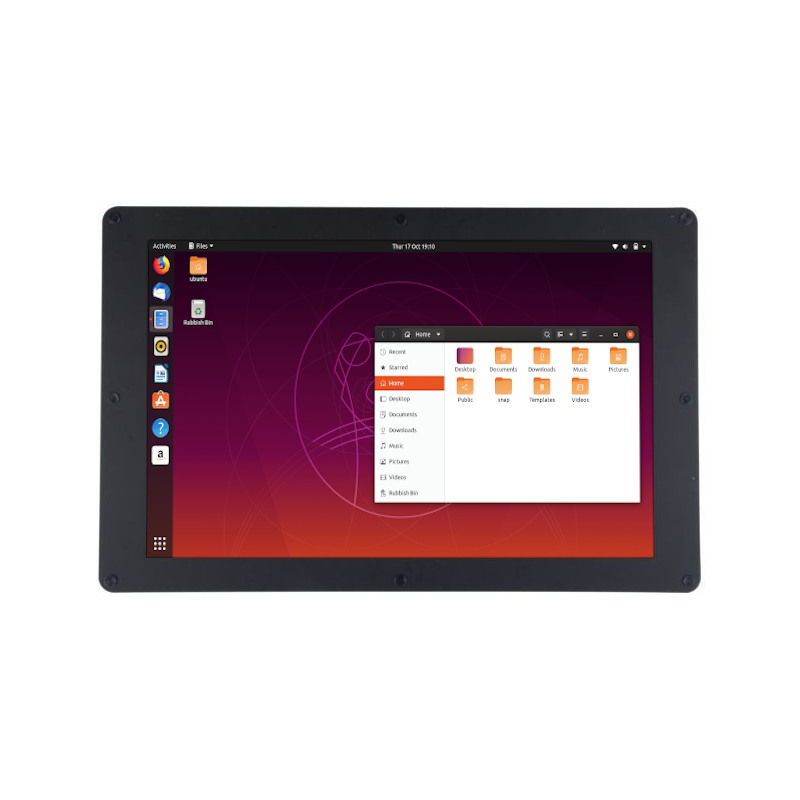

Here we offer you this high-resolution, ultra-wide viewing angle ISP HDMI display. Specifically, this display has a resolution of 1200*1920 and a viewing angle up to double 178 degrees. It is small and light, easy to carry, and compatible with most platforms with HDMI interface. No need for drivers, true plug and play.
In addition, this display has a backlight-adjustable function that allows you to adjust the brightness using the buttons on the back. This series
includes the following three products:
5 inch 720x1280 HDMI IPS LCD Display
7 inch 720x1280 HDMI IPS LCD Display
10.1 inch 1200x1920 HDMI IPS LCD Display
Features
- Ultra-thin.
- High viewing angle .
- High resolution.
- Raspberry pie can be assembled on the back
Assembly Drawing
You can also mount the Raspberry Pi onto the back of the screen:
For more detail about assembly, please check the DOCUMENTS TAB.
|
Dimension
|
10.1 inch
|
|
Resolution
|
1200x1920
|
|
Refresh Rate
|
60HZ
|
|
Panel Type
|
ISP panel (viewing angle double 178°)
|
|
Power
|
Micro usb standard interface
|
|
Working Current
|
5v 600mA
|
|
Support Platform
|
Paspberry Pi,Windows,etc. HDMI interface
|
|
Interface
|
HDMI2.0 (Compatible with HDMI1.4)
|
|
Frame Material
|
colorful acrylic plate
|
|
Attachment
|
HDMI2.0 cable, micro USB cable，Back bracket，raspberry pi mounting screws
|
|
Features
|
Ultra-thin, high viewing angle, high resolution
|
|
Other Functions
|
Backlight power switch, backlight brightness adjustment
|
| Part List |
Number |
| 10.1 inch screen |
1 |
| HDMI2.0 cable |
1 |
| Micro USB cable |
1 |
| Back bracket |
1 |
| Raspberry pi mounting screws bag |
1 |
ECCN/HTS
| ECCN |
ERA99 |
| HSCODE |
9013803010 |
| USHSCODE |
85312000 |
DOCUMENTS
Datasheet
Bracket installation instructions
Raspberry Pi Mounting Guide
