LT1083 7A Power Supply kit DC INPUT:2.5~38Vdc or AC INPUT:2.5~27Vac

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features:

The LT1083CP is used as the regulating element, the voltage regulation limits lie in the range from 1.5 to 30V, current up to 7 Amps.

The LT1083 series of positive adjustable regulators are designed to provide 7.5A, 5A and 3A with higher efficiency than currently available devices. All internal circuitry is designed to operate down to 1V input-to-output differential and the dropout voltage is fully specified as a function of load current.

Dropout is guaranteed at a maximum of 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress on both the regulator and power source circuitry under overload conditions.

The LT1083-LT108-LT1085 devices are pin compatible with older 3-terminal regulators. A 10μF output capacitor is required on these new devices. However, this is included in most regulator designs. Unlike PNP regulators, where up to 10% of the output current is wasted as quiescent current, the LT1083 quiescent current flows into the load, increasing efficiency.

LT1083 power supply Schematic:

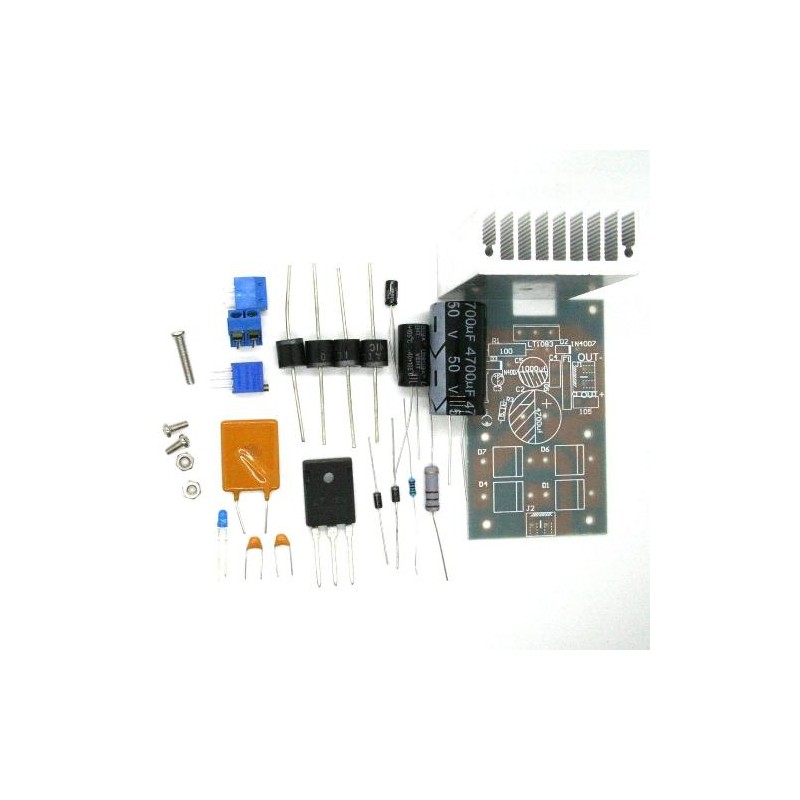

Components List:

1x PCB
2x KF301-2P
4x 10A10 Rectifier Diode
2x 1N4007 Diode
1x 3mm Blue LED
1x 4700 UF/50 V
1x 470 UF/50 V
1x 10 UF/50 V
1x 5.1 K resistor 0.25 W
1x 100 ohm 2 W
1x 3296-10 K potentiometer
1x 7A fuse
1x LT1083 regulator


Specifications:

PCB size: 74mm x 46mm;
DC INPUT: 2.5~38 Vdc;
AC INPUT: 5~27 Vac;
DC OUTPUT: 2.5~35 Vdc;
Max current: 7Amp.
Minimum Input / Output diferencial: 2.5Vdc
