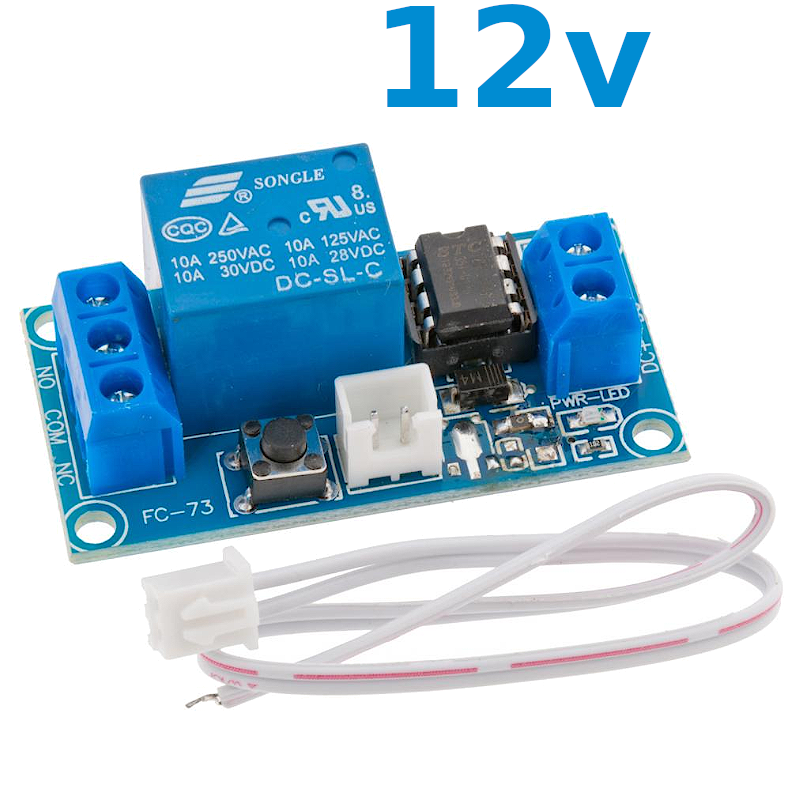

1 Channel Self-locking Relay Module 10A 12v

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Manufacturer information:

• The power required by the by -line diagram , is not reversed , although the protection circuit , but not for a long time reversed
• Product regulator slight fever is a normal phenomenon , long working hours have a normal relay heat phenomena are normal
• Relay load power to give leave some margin should avoid high-power ( about 2000W) and long working environment , there will be some impact on the life of the product

 Features:

• Double panel design PCB;
• Chips made using stable and reliable control , stable and reliable performance , strong anti-interference , not false triggering , performance is superior than the CD4013 ;
• Regulator has the power to provide adequate and stable voltage , and have enough vents to ensure stable and reliable product to work for a long time
• With anti- reverse protection diode power , reverse power for a short time without any damage to the product ;
• Use relay control load in 250V 10A ( AC ) and 30V 10A ( DC ) under load can withstand ;
• Has a touch switch as product testing , stability testing of products directly ;
• Can also trigger an external trigger switch , the products have a connection with a good seat and lead , more convenient to use ;
• Triggering sensor module can also be used to do other triggers , are valid as long as the trigger is low , there are more functional expansion;

Note: DC voltage input voltage to match the voltage relay, the relay must not exceed the voltage range, otherwise it will burn module

• Size:(L*W*H)5.00*2.60*1.75cm

Parameters :

• Supply Voltage :12V (DC)
• Supply current : more than 100mA
• Load : 250V 10A (AC) or 30V 10A (DC)

Usage:

• Press the trigger button , the relay is locked , press again , the relay off , you can also add the trigger switch , and the use of low-level trigger .
• Control appliances , home of various lighting control, factory equipment control , current control for a variety of small high-voltage power control products .

Package includes:

• 1Pc x1 Channel Self-locking Relay Module
• 1pc× Trigger Line
