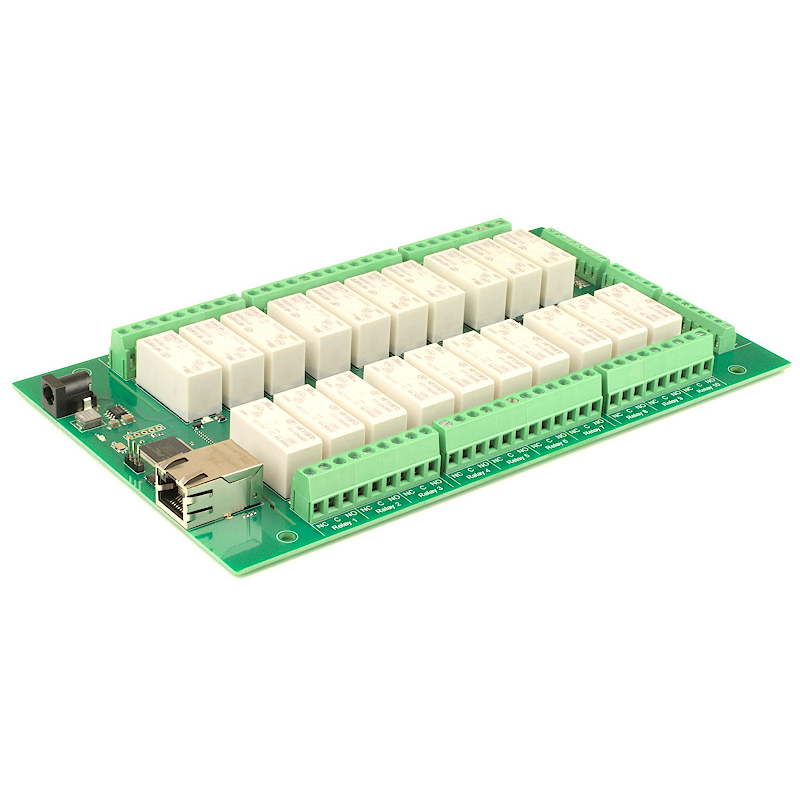

ETH1620 - 20 x 16A ethernet relay w/ 16 Analogue (0-5v)

: MRE04067
€144.90
Tax included

If you want to know more about this product, just check the ETH1620 Documentation.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Relays - 20
Analogue Inputs (0-5v) - 16
Power - 12V DC adaptor, supplied separately.
Configuration & Test interface - HTTP (webpage).
Control interface - TCP/IP over Ethernet.
Relay current - Up to 16Amp @24vdc or 250vac
Connections - Screw Terminals for N/O N/C and Common contacts.
Ethernet connection - 100mb full duplex

Full ETH1620 Documentation

Java network scanner app, easily find your module even on another subnet - Devantech module finder

Examples:
Java - command line application for controlling the module
Perl - Simple example of setting an output active/inactive by tcp
PHP script - Simple example of setting an output active/inactive by tcp
Python  - command line application for controlling the module
Visual Basic - source code for simple program, includes UDP scan to determine any boards connected to the local network
Visual C# - source code for simple program, includes UDP scan to determine any boards connected to the local network
