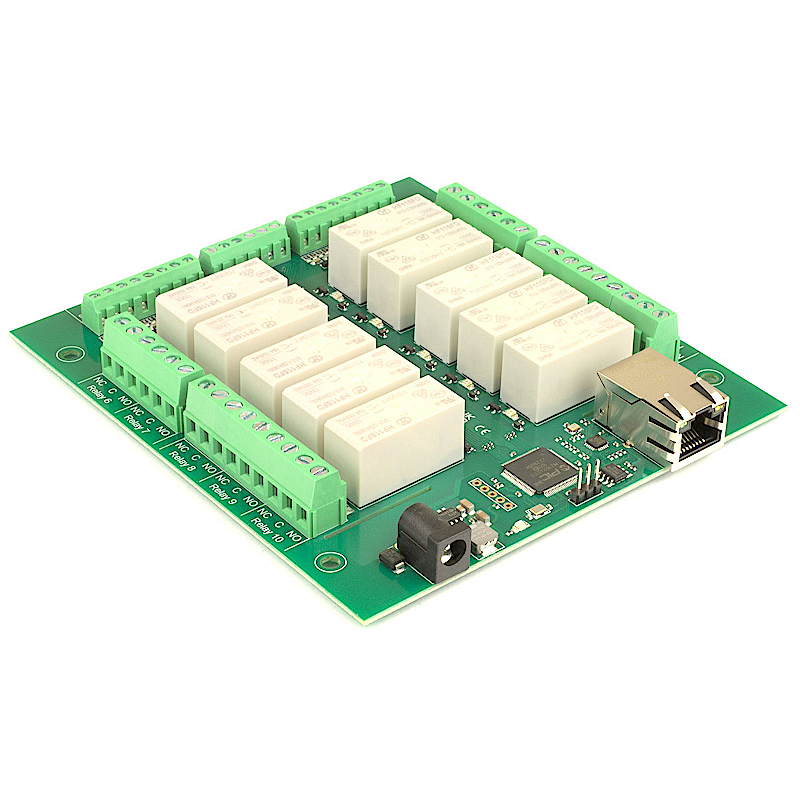

ETH1610 - 10 X 16A ETHERNET RELAY

: MRE04066
€94.90
Tax included

If you want to know more about this product, just check the Full ETH1610 Documentation.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Relays - 10
Analogue/digital Inputs - 16 inputs at 5v 10 analogue conversion or will report inputs as simple digital levels
Power - 12V DC adaptor, supplied separately.
Configuration & Test interface - HTTP (webpage).
Control interface - TCP/IP over Ethernet.
Relay current - Up to 16Amp @24vdc or 250vac
Connections - Screw Terminals for N/O N/C and Common contacts.
Ethernet connection - 100mb full duplex





Full ETH1610 Documentation

Java network scanner app, easily find your module even on another subnet - Devantech module finder

Examples:
Java - command line application for controlling the module
Perl - Simple example of setting an output active/inactive by tcp
PHP script - Simple example of setting an output active/inactive by tcp
Python V3 - command line application for controlling the module
Visual C# - source code for simple program, includes UDP scan to determine any boards connected to the local network
