SONOFF THR320D Elite Smart Temperature and Humidity Monitoring Switch 20A

: MRE04049
€17.50
Tax included

【20A Max & Dry Contact Output】 Support to connect 20A Max high load, dry contact output.
【LCD Screen】Real-time monitoring of temperature and humidity data, the screen refreshed every 5S.
【6-Month Temp & Humi Historical Data by Hours】 Support to review the temp & hum history data by hour, day and month. Past 6-month history data can be exported in .xlsx format and accurate to hour.
【Local Automatic Control】Support LAN control, automatic control is more reliable. You can set 8 automatic control programs for you to save electricity bills and create comfortable surroundings.
【Voice Control and Query】Work with Alexa, Google Assistant, you can query temperature and humidity values by your voice.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

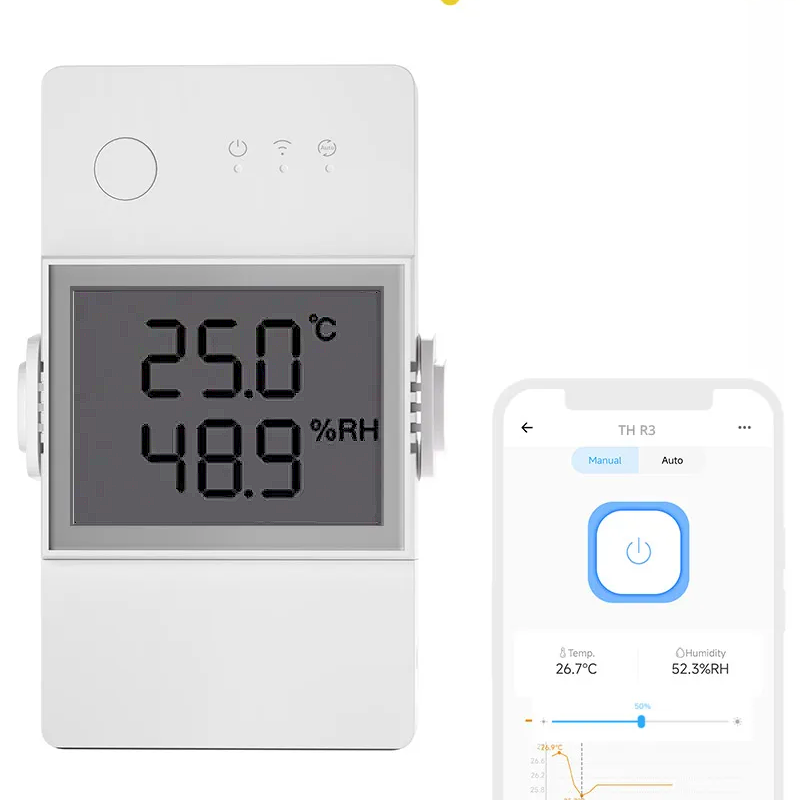

SONOFF TH Elite is a Smart Temperature and Humidity monitoring switch based on ESP32. With an LCD screen, TH Elite keeps monitoring the temperature and humidity in real-time, once they reach your preset threshold or the device's on/off state changes, you will receive the push notification on the phone. Support to connect 20A Max high load equipment like electric floor heating. You can replace your dry contact outputted traditional thermostat with TH Elite, to control the combi boiler or any other systems controlled by the ordinary switch. TH Elite support to review 6-Month Temp & Humi historical data accurate to the hour. In the smart scene, temperature, humidity, on, off support setting as the trigger, on, off, invert as execute actions. Support adding SONOFF devices to Home Assistant for control and automation through eWeLink add-on. TH Elite turns your traditional thermostat into smart, automates your irrigation system, and gives you an easy way to monitor the temperature and humidity.

SONOFF TH Elite supports three kinds of temperature monitor and humidity monitor sensors—THS01 Temp & Humi Sensor, DS18B20 waterproof Temp sensor, and MS01 Soil Moisture Sensor. The sensor connector is upgraded to RJ9, supporting hot-plugging making the connection more stable and reliable.

The RL560 sensor extension cable can connect the SONOFF temperature and humidity sensors to extend your device's distance. THS01, DS18B20 can be extended to 60M, and MS01 Soil Moisture Sensor can be extended to 10M.

THS01 Sensor

  • Sensor Type: Temperature & Humidity sensor
  • Connector type: RJ9 4P4C
  • Temperature Measuring Range: –40℃~+85°C
  • Humidity Measuring Range: 0~100%RH
  • Cable Length: 50cm

DS18B20 Sensor

  • Sensor Type: Waterproof temperature sensor
  • Connector type: RJ9 4P4C
  • WorkigTemperature: -55℃~+125℃
  • Length: 50cm

MS01 Sensor

  • Sensor Type: Soil Moisture Sensor
  • Humidity Measuring Range: 0~100%RH
  • Operating Temperature Range: 0℃~60°C
  • Cable Length: 50cm

RL560 Sensor Extension Cable

  • Conductor resistance: max.10Ω
  • Insulation resistance: min.5MΩ
  • Length: 5m cable length & Max. 60m extendable length.

Documents
