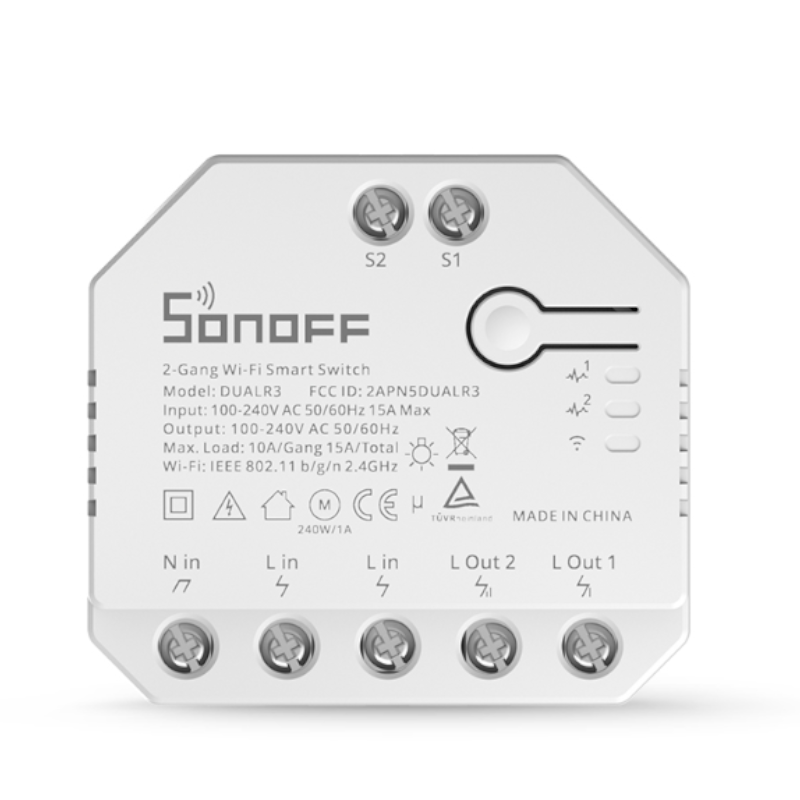

SONOFF DUALR3 Dual Relay Two Way Power Metering Smart Switch

: MRE04046
€16.35
€12.10 Save €4.25
Tax included

【Roller Shades Motor Control】Let your electric curtains, roller blinds, etc become smart immediately.
【External Switch Two-Way Control】DUALR3 has 6 types of external switch detection mechanisms, making it suitable for most physical switch control.
【Power Metering】The 2-Gang detects voltage, current, and power values and counts the power consumption for you independently to allow for reasonable energy consumption control.
【With The Most Features】DUALR3 has three working modes that meet the needs of different application scenarios. Remote, timing, voice control, smart scenes, and other functions are all available.
【Safe And Reliable】TUV, CE, FCC, and RoHS certifications ensure a safer and more reliable product.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

DIY Your Automated Motorized Facilities

DualR3 can operate as a smart control module for 100-240V AC motor. Like tubular motor for bi-directional motorized curtain, blinds,roller shutter, awning, ect.
Note: DUALR3 is applicable to four wires(GND, neutral, Forward, and Reverse) AC motors, like tubular motors.Schedule to Open and Close for Comfortable Life

Want to be awakened with the first ray of sunlight in the morining or adjust the percentage of curtain opening to avoid the light ruins you furniture? DUALR3 can help you easily realize, just connect it with your motorized curtain to enjoy your smart life.Creating an Astomsphere, Actually Simple

DUALR3 works with other SONOFF products like L1. Just tell Siri and it wil automatically close the curtain for you to create a romantic atomosphere.
Note: Siri voice control is a shortcut of Siri in eWelink, DUALR3 does not support Homekit temporarily.Power Metering Helps You to Save on Electricity Bills

Want to turn off in schedule to save electricity bills?Want to check the real-time power of the appliances?
Want to view historical consumption?
Now you can enjoy two independent channels with power metering in all of three working modes!Double Two-Way Control of Lights

To control the lights via downstair or upstairs switch? DUALR3 helps you! The working mechanism of DUALR3 allows you to achieve two-way control for two appliances respectively.Keep Your Appliances always Be On-Meter Mode

DUALR3 has a special working mode called meter mode. In this mode, the electrical appliance loads of DUALR3 will always remain on, the relay state will not be changed by APP or external switches, Only focusing on power monitoring and metering!

Overload Protection

Set the maximum and minimum values of voltage, current and power. Once the appliance is in abnor-mal working state, it will automatically cut off power for safety.Compatible with Your Existing Various Switch Types

SONOFF DUALR3 Dual Relay Module Wifi DIY MINI Switch Two Way Power Metering Smart Home 2 Gang/ Way Switch

SONOFF DUALR3 takes your home to the next level. DUALR3 is a flush-mounted Wi-Fi smart dual relay switch module that is installed behind any standard switch to transfer it into a smart switch for wireless remote control with mobile devices or voice command. Unifying your home appliances into an integrated wireless network to make them communicate with one another which is convenient for you to manage and control, including lights, home appliances and motorized facilities like roller shutters, window shades, blinds, awning, etc.
Three working modes available. DUALR3 comes with switch mode, motor mode and meter mode. One of the typical features is roller shutter and window shades smart control in the motor mode. The switch module offers the ultimate flexibility for your roller shutter and window shades by app remote control and scheduling timed events no matter whether you are home or away.

Double two-way control. The double relay switch module distributes the load to two inputs compared to the simple relay, which this working mechanism lets you have two-way control for two devices independently.



Documents



Additional information

Weight 72 g
Brand

SONOFF

Product Type

Dual Relay Two Way Power Metering Smart Switch

Power Supply

Power Supply

Resistive Load

3300W/15A/Total, 2200W/10A/Gang

Motor Load

10-240W/1A

Max Power

3300W(total) / 2200W(1 gang)

Product Dimensions

54*49*24mm

Color

White

Frequency

802.11 b/g/n

Security Mechanism

WPA-PSK/WPA2-PSK

Humidity

5%-95%RH, Non-condensing

Enclosure Material

Fire-retardant PC V0

Operating Temperature

-10ºC-40ºC

Switch Channel

Dual

Certified Compliance

TUV, CE, FCC

Works With

Amazon AlexaGoogle Assistant

MRE04046
