Gravity: WiFi IoT Module

: COM02053
€16.90
Tax included

This WiFi IoT module could be an excellent choice for IoT teaching and smart home projects. It supports for multiple programming platforms, such as MakeCode, Mind+ and Arduino IDE

You can use it to build IoT applications with other mainboards like micro:bit, Arduino, etc.

If you want to know more about this product, please check the Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

This WiFi IoT module would be an excellent choice for IoT classroom teaching and smart home projects. It supports multiple programming platforms, such as MakeCode, Mind+, and Arduino IDE, and can also be used on various popular IoT platforms like Easy IoT, IFFTTT, ThingSpeak, SIoT. Besides that, the module is designed with easy-to-use Gravity interface and employs UART and I2C communication protocols. You can use it to build IoT projects with other mainboards like micro:bit, Arduino, STM32, etc.





WIFI IoT Module

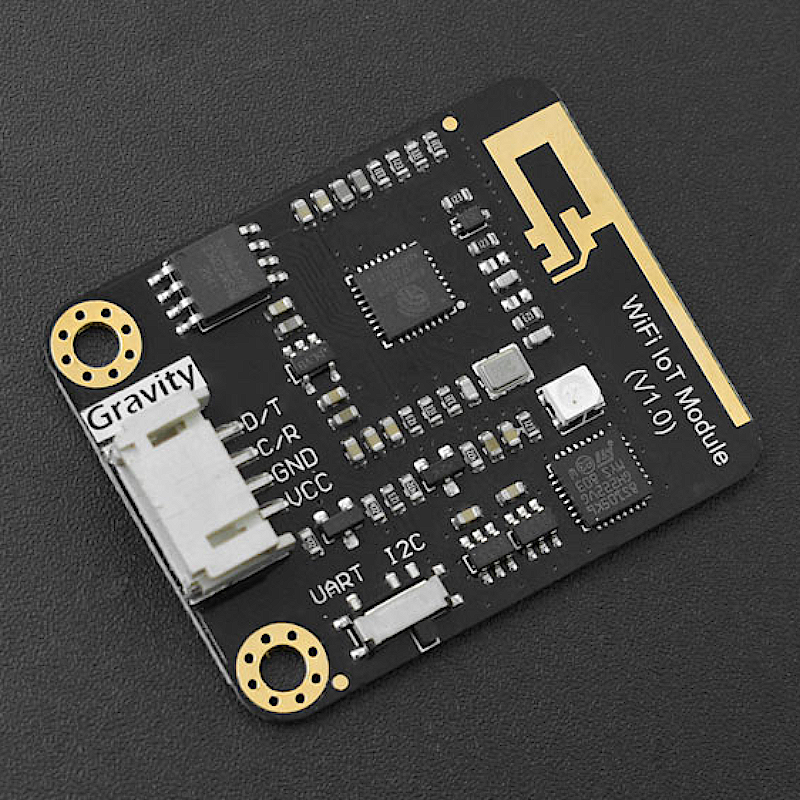

Board Overview



Features

  1. Support Arduino IDE programming, MakeCode and Mind+ Graphical Programming

  2. I2C and UART Communication

  3. Support Maincontroller Arduino, micro:bit, etc.

  4. Support protocols like MQTT, HTTP, etc. Work well with IoT platforms EasyIoT, IFTTT, ThingSpeak, etc.

  5. PH2.0-4P Gravity Interface



Specification

  1. Power Supply: 3.3V~5.5 V

  2. Communication: I2C, UART

  3. Wireless Mode: IEEE802.11b/g/n

  4. Encryption Type: WPA WPA2/WPA2–PSK

  5. WiFi Frequency: 2.4GHz

  6. Built-in Protocol: TCP/IP Protocol Stack

  7. Dimension: 37×32mm/1.46×1.26”

  8. Supported IoT Platforms: Easy IoT, IFFTTT, ThingSpeak, SIoT

  9. Supported Programming Platforms: Arduino IDE, MakeCode, Mind+



Documents



Shipping List

  • Gravity: WIFI IoT Module ×1

COM02053
