Air602 WiFi Development Board

: COM02048
€5.00
Tax included

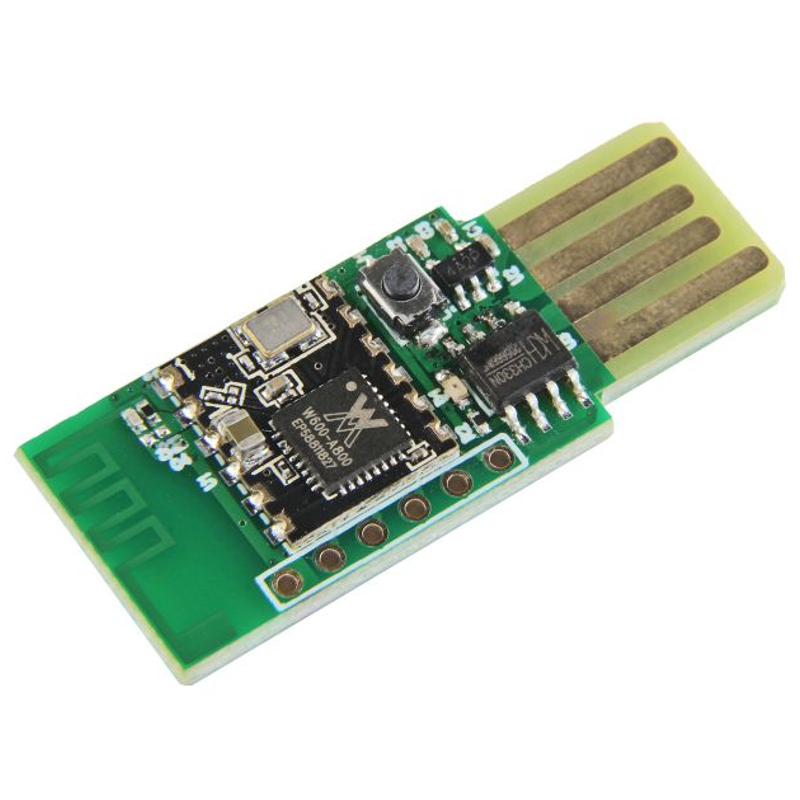

The Air602 WiFi Development Board is based on Air602 Wi-Fi module and integrated USB interface and Antenna. If you plug this board into your computer, it will be recognized as an Ports (COM & LPT), so that you can code it with Serial port tool. This module support IEEE802.11b/g/n and AT command.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

PRODUCT DETAILS

The Air602 WiFi Development Board is based on Air602 Wi-Fi module and integrated USB interface and Antenna. If you plug this board into your computer, it will be recognized as an Ports (COM & LPT), so that you can code it with Serial port tool. This module support IEEE802.11b/g/n and AT command.

Meanwhile, if you do not need the USB, you can consider the Air602 Wi-Fi module. The size of which is only 12mm*10mm.

Note

The Air602 forum is available now, you can find more resource here, and you can leave a message or discuss here.



Features

  1. Interface

    • USB interface

    • UART/SPI

    • Integrated GPIO device controller

  2. Wireless

    • Support IEEE802.11 b/g/e/i/d/k/r/s/w/n

    • Support 2.4~2.4835 GHz

    • Support Wi-Fi WMM/WMM-PS/WPA/WPA2/WPS

    • Support Wi-Fi Direct

    • STBC、GreenField、Short-GI

    • Support multiple network protocols: TCP/UDP/ICMP/DHCP/DNS/HTTP



Typical Applications

  1. intelligent home appliances

  2. smart home

  3. wireless audio and video

  4. smart toys

  5. medical monitoring

  6. industrial control

  7. other Internet of Things applications



Technical details

Dimensions

3.8mm x1.5mm x3mm

Weight

G.W 2g

Battery

Exclude

WiFi Mode

IEEE802.11b/g/n

Frequency Range

2.4~2.4835 GHz

Modulation

DSSS、OFDM、DBPSK、DQPSK、CCK、QAM16/64

Interface

UART、SPI、GPIO

Network Type

STA/AP/AP+STA/Wi-Fi Direct

Verification Method

WEP/WPA-PSK/WPA2-PSK

Network Protocol

TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP

Interface Protocol

AT+ instruction set

IC

W600 Wi-Fi SoC



Part List

Air602 WiFi Development Board

1



ECCN/HTS

HSCODE

8517709000

USHSCODE

8517700000

UPC

841454121107



LEARN AND DOCUMENTS



Learn

[Wiki] Air602 WiFi Development Board

This is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.
