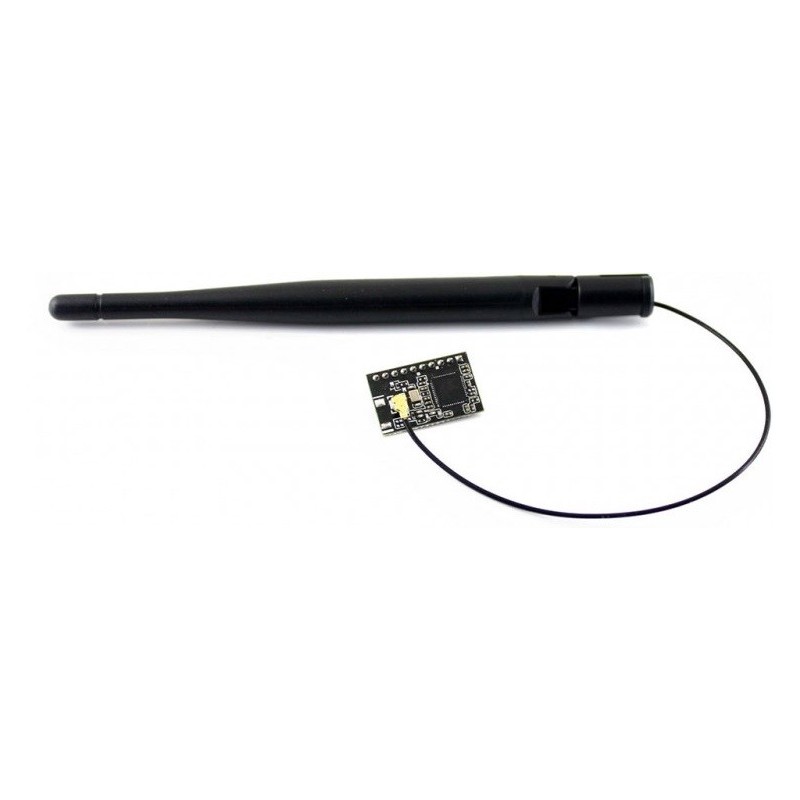

WIFI-LPT100-B, Low Cost WiFi Module - WS
: COM02042
€9.80
Tax included
WIFI-LPT100-B is a low cost UART WiFi module, nearly half size of the thumb, requires ultra low power consumption to keep working. It is an ideal choice for low flow communication situation.
Please consider the WIFI400 motherboard simplify the development.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Overview
WIFI-LPT100-B is a low cost UART WiFi module, nearly half size of the thumb, requires ultra low power consumption to keep working. It is an ideal choice for low flow communication situation.
Features
- Easy to use: just like a simple UART module (AT commands provided)
- Ultra low power: min 32mA@3.3V online power consumption in various low-power modes
- Small form factor: size of a coin
Functionality & Performance
- Solution: MTK single stream WiFi@2.4GHz, ARM Cortex-M3
- Wireless LAN protocols: IEEE 802.11 b/g/n
- WIFI security algorithms: WEP/WPA-PSK/WPA2-PSK
- Working modes: STA/AP/STA+AP (AP means WiFi hotspot, STA means terminal device)
- AP mode: up to 3 devices
- STA mode: server allows 5 connections
- AP+STA mode: AP allows 3 clients
- Multi network protocols: TCP/UDP/HTTP
- Supports DHCP, to allocate IP automatically
- Supports AT+ instructions set and Web configuration
- Supports Transparent/Agreement transmission modes, with 1K cache
- Supports configuring UART framing delay and data volume
- Up to 460800bps baudrate
- Supports Simple Config/Airkiss fast networking
- Firmware is upgradable via web
- Supports NTP datetime configuration
- Supports UART heartbeat packet
- Signal can pass through one wall
- Communication distance: 200 metres with 3DB antenna (between two modules under open and wide environment)
- Supports factory reset: pull-down the Reload IO port for 3s, restore the module to its factory settings immediately
Software
- Test software for WINDOWS, iOS, Android
- Communication example source code for iOS, Android
Development Resources
Wiki : www.waveshare.com/wiki/WIFI-LPT100-B
Selection Guide
General Comparison | WIFI-LPT100-B | WIFI232-A2 | WIFI232-B2 |
---|---|---|---|
Suit for | low flow | high flow | high flow |
AP mode connections | 3 | 32 | 32 |
STA mode connections | 5 | 32 | 32 |
AP+STA mode connections | 3 | 32 | 32 |
Power consumption | ultra low | high | high |
Interface | 2.0mm, 1x10 | 2.0mm, 2x7 | 2.0mm, 2x7 |
Antenna | external | onboard | external |
Shield case | × | √ | √ |
Dimension (mm) | 22 x 13.5 | 25 x 40 | 25 x 40 |
Specifications | WIFI-LPT100-B | WIFI232-A2 | WIFI232-B2 |
WiFi chip | MTK single stream WiFi@2.4GHz | Marvell WiFi (router solution, hardware AP) | |
Microcontroller | ARM | ||
Wireless protocol | 802.11 b/g/n, 2.412GHz-2.484GHz | ||
TX power | 802.11b: +18 +/-1dBm(@11Mbps,CCK) 802.11g: +17 +/-1dBm(@54Mbps,OFDM) 802.11n: +15 +/-1dBm(@HT20,MCS7) |
802.11b: +19dBm(Max.@11Mbps) 802.11g: +18dBm(Max.@54Mbps) 802.11n: +17dBm(Max.@HT20,MCS7) 802.11n: +17dBm(Max.@HT50,MCS7) |
|
pass through one wall | pass through three concrete walls under 57600 baudrate, embedded PA, configurable power |
||
RX sensitivity | 802.11b: -85 dBm(@11Mbps,CCK) 802.11g: -70 dBm(@54Mbps,OFDM) 802.11n: -68 dBm(@HT20,MCS7) |
802.11b: -89dBm (@11Mbps) 802.11g: -81dBm (@54Mbps) 802.11n: -73dBm (@HT20,MCS7) 802.11n: -71dBm (@HT40,MCS7) |
|
Antenna | external 3DB antenna | onboard PCB antenna | external 3DB antenna |
Communication distance (open environment) |
200 metres | 200 metres | 280 metres |
UART | baudrate: 1200bps-460800bps | baudrate: 300bps-460800bps | |
hardware flow: not supported | hardware flow: supported | ||
framing delay and data volume configuration: supported | framing delay and data volume configuration: supported | ||
transparent/agreement transmission: supported (1K cache) | transparent/agreement transmission: supported (4K TCP cache, totally 1M cache) | ||
Other interfaces | - | Ethernet (100M), PWM, GPIO | |
Connector | through hole: 1x10, 2.0mm pin headers | through hole: 2x7, 2.0mm pin headers | |
Operating voltage | 3.0~3.6V | 3.3~3.6V | |
Operating current | 32~285mA | 170~350 mA @ 3.3V | |
Temperature | operating temperature: -40℃- 85℃, storage temperature: -45℃- 125℃ | ||
Dimension | 22mmx13.5mmx9.2mm | 25mmx40mmx8mm | |
AP mode | supported, up to 3 devices | supported, up to 32 devices | |
STA mode | supported, server allows 5 connections | supported, server allows 32 connections | |
AP+STA mode | supported, AP allows 3 clients | supported, AP allows 32 clients with route function | |
Security algorithms | WEP/WPA-PSK/WPA2-PSK | ||
Encryption | TKIP/AES | WEP64/WEP128/TKIP/AES | |
Network protocol | TCP/UDP/HTTP | TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP | |
Misc | supports WPS | supports route/bridge modes | |
Online mechanism | - | built-in watch dog and heartbeat mechanism to keep online | |
Firmware upgrade | via web | ||
User configuration | AT+ instructions set, web page | ||
Android/iOS terminal, Simple Config/Airkiss auto config | Android/iOS terminal | ||
Restore factory | pull-down the Reload IO port for 3s, no worries for faulty setting | ||
Electrical certification | FCC/CE | ||
Process standard | RoHS |
PACKAGE CONTENT
Weight: 0.002 kg
- WIFI-LPT100-B x1
- External antenna x1
