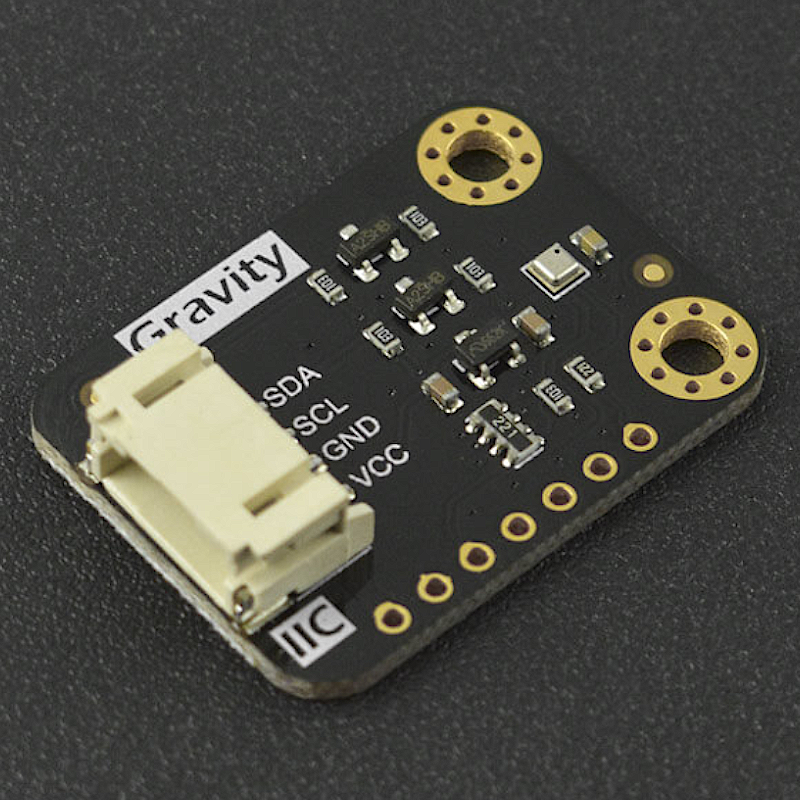

Gravity: BMP388 Barometric Pressure Sensors

: SEN12010
€8.80
Tax included

The newly introduced BMP388 barometric pressure sensor by DFRobot is equipped with the functionality of temperature and pressure measurement. It supports Arduino code control.

If you want to know more about this product, please check the Wiki Page.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

This new released BMP388 barometric pressure sensor by DFRobot is equipped with the functionality of temperature and pressure measurement. It supports Arduino code control. Compared with the earlier version of BMP180, BMP280, and BMP388, this sensor exhibits lower power consumption, higher resolution and higher sampling rate.

The barometric pressure is usually used to measure barometric pressure and temperature. But besides that, we can also use the sensor to measure the altitude and the relative floor height due to the fact that there is a certain relationship between altitude and barometric pressure. What’s more, BMP388 enables accurate GPS tracking. So with an IMU sensor and BMP388, we can experience 3D indoor positioning and navigation.

BMP388 is based on Bosch’s mature Piezo resistive pressure sensor technology featuring high accuracy as well low power consumption and high EMC robustness.

The sensor features an accuracy of about ±8Pa, which is equivalent to about ±0.5m difference in altitude, and an absolute accuracy temperature of ±0.5℃ for a temperature range between 0℃ and 65℃.



Features

  1. Low power consumption

  2. Low noise

  3. High resolution

  4. Small dimensions

  5. Best-in-class offset temperature coefficient（-20℃-65℃@700-1100hPa）



Specification

  1. Operating Voltage: 3.3V-5.5V

  2. Operating Current: 0.5mA

  3. Operating Range: 300-1250 hPa

  4. Relative Accuracy: ±8 Pa (equivalent to ±0.50m @700-900hPa, 25℃-40℃)

  5. Absolute Accuracy: ±50 Pa（0℃-65℃@300-1100hPa）

  6. Temperature Coefficient Offset: ±0.75 Pa/K（-20℃-65℃@700-1100hPa）

  7. Absolute Accuracy Temperature: ±0.5℃（@0℃-65℃）

  8. Operating Temperature: -40℃~80℃ (more accurate in 0℃-65℃)

  9. External Dimension: 22mm x 30mm

  10. Mounting Hole Position: 15mm

  11. Mounting Hole Dimension: inside diameter 3mm/ outside diameter 6mm

  12. Interface: Gravity-I2C 4Pin or SPI (SPI is only used at 3.3V)



Documents



Shipping List

  1. Gravity：BMP388 Barometric Pressure Sensor module x1

  2. PH2.0-4P sensor cable x1

SEN12010
