Gravity: Laser PM2.5 Air Quality Sensor For Arduino

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

PM2.5 laser dust sensor is a digital universal particle concentration sensor，it can be used to obtain the number of suspended particulate matter in a unit volume of air within 0.3 to 10 microns, namely the concentration of particulate matter, and output with digital interface, also can output quality data of per particle. The sensors can be embedded in a variety of concentrations of environment-related instruments suspended particulate matter in the air ,to provide timely and accurate concentration data.

SPECIFICATION

• voltage: 4.95 ~ 5.05V
• Maximum electric current: 120mA
• Measuring pm diameter: 0.3~1.0/1.0~2.5/2.5~10 (um)
• Measuring pm range: 0~1000 ug/m3
• Standby Current: ≤200 uA
• Response time:  ≤10 s
• Operating temperature range:  -20 ~ 50C
• Operating humidity range: 0 ~ 99% RH
• Maximum size: 46 * 35 * 20mm (1.82 x 1.38 x 0.79 inches)
• MTBF: > = 5 years

DOCUMENTS

• wiki (Laser PM2.5 Air Quality Sensor For Arduino)
• Library

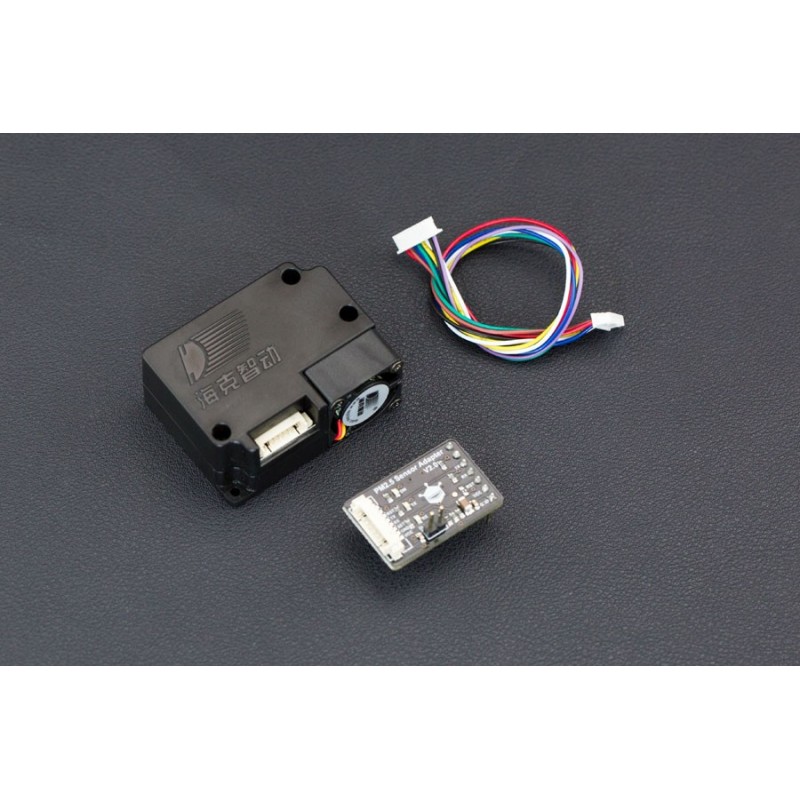

SHIPPING LIST

• PM2.5 laser dust sensor x1
• PM2.5 sensor adapter x1
• sensor adapter cable x1
