The CCS811 is supported by only a few passives, and so the breakout board is relatively simple. This section discusses the various pins on the board.

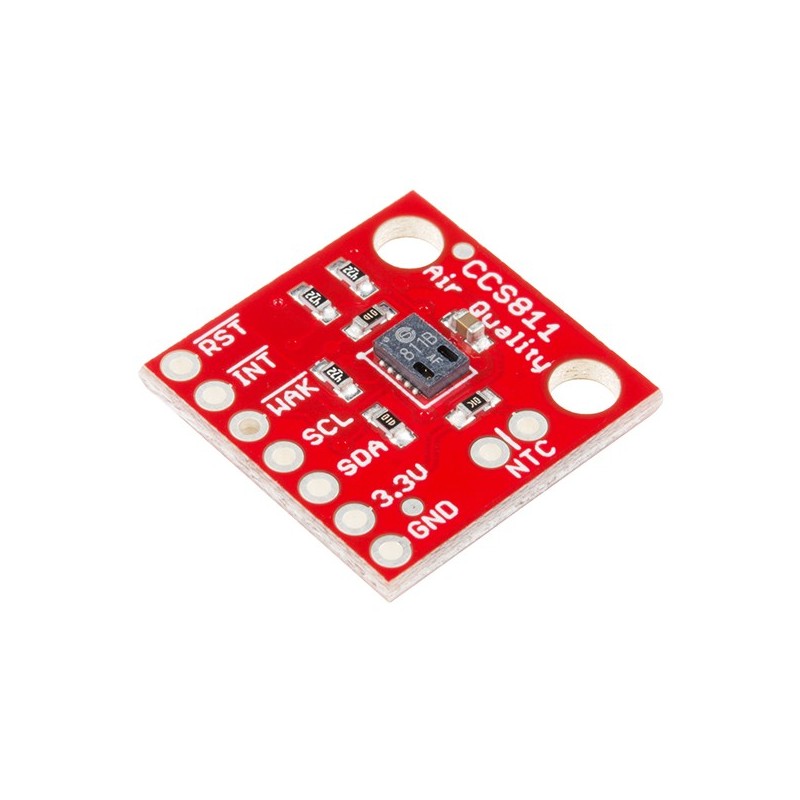

Connections available to the user are shown on the top side
Jumpers are available on the bottom
Pins
| Pin |
Description |
Direction |
| RST |
Reset (active low) |
In |
| INT |
Interrupt (active low) |
Out |
| WAK |
Wake (active low) |
In |
| SCL |
Clock |
In |
| SDA |
Data |
In |
| 3.3V |
Power |
In |
| GND |
Ground |
In |
| NTC (2 pins) |
Negative thermal coefficient resistor |
N/A |
Power and I2C Bus
The minimum required connections are power, ground SDA and SCL. Supply a regulated 3.3V between the board’s 3.3V pin and ground terminals. The sensor consumes an average of 12mA of current.
The I2C bus has pull-up resistors enabled by default. If not desired, these can be removed by separating the “I2C PU” triple jumper on the bottom side with a hobby knife.
An I2C address can be either 0x5A or 0x5B. The “ADDR” jumper is connected with copper from the factory, corresponding to a default address of 0x5B. Separate this jumper to use the address 0x5A.
Settling time: This sensor takes about 20 minutes to get fully settled to a point where it generates good data. The I2C bus is active, and data can be collected before the 20 minutes is up, but it may not be accurate.
Control lines
Additionally, the three control lines RST, INT and WAK can be used to further the degree of control.
- RST — Pull this line low to reset the IC.
- INT — After configuring the sensor to emit interrupt requests, read this line to determine the state of the interrupt.
- WAK — Pull this line high to put the sensor to sleep. This can be used to save power but is not necessary if power is not an issue.
NTC Thermistor operation
A thermistor can be used to determine the temperature of the CCS811’s surroundings, which can be used to help compensate the readings. You’ll need your own 10K NTC thermistor, such as our 10K Thermistor, soldered between the “NTC” pins. A thermistor is a nonpolarized device, so it can go in either way.
Hardware Assembly
Attach Headers
To prepare the sensor for the examples, attach seven pins from a Break Away Header to the through holes. Even though we only need the four I2C pins, we’ll populate all of them for this guide in case we want to try them out.
Place the strip of seven pins in a breadboard.
Solder a single pin and then check that the board is square to the pins.
Solder the remaining pins.
Attach NTC thermistor (Optional)
If you would like to use a thermistor to compensate for temperature, solder in a 10K Thermistor (Vishay part number NTCLE100E3103JB0).
Attaching an NTC thermistor
Example Assemblies
You’re ready to start communicating with the CCS811! Here’s an example with the NTC Thermistor populated, and one using right-angle headers instead.
Arduino Library and Usage
Getting the CCS811 Arduino Library
To get the Arduino library, download from GitHub or use the Arduino Library Manager.
Download the GitHub repository
Visit the GitHub repository to download the most recent version of the library, or click the button below:
Use the Library Manager or install in the Arduino IDE
For help installing the library, check out our Installing an Arduino Library tutorial.
If you don’t end up using the manager, you’ll need to move the SparkFun_CCS811_Arduino_Library folder into a libraries folder within your Arduino sketchbook. If you downloaded the zip, you can remove “master” from the name, but it’s not required.
