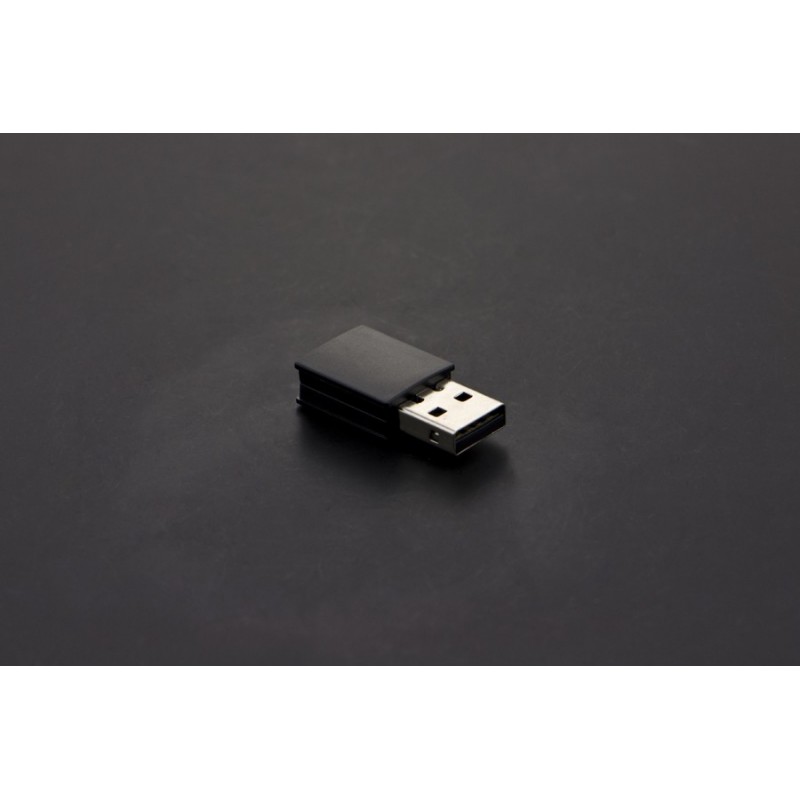

USB BLE-Link (Support Wireless Programming)

Add bluetooth 4.0 to your PC, Mac directly with this USB BLE-Link. It uses the USB package which is compact and compatible with v2.1 and earlier, and also supports the latest v4.0/Bluetooth Low Energy. Now you could use this adapter to receive/transmit data.

With two USB-BLE Link users can do point-to-point wireless transparent transmission, master-slave machine setting, and wireless programming. It can also work as a PC BLE wireless programming adapter. Comaptible all DFRobot BLE series modules: i.e. Bluno, Romeo BLE, etc

• Bluetooth chip: TI CC2540
• Frequency: 2.4GHz
• Pin Layout: Compatible with Xbee pinout
• Transfer rate: ≤1Mbps
• Modulation: GFSK, bluetooth low power, V4.0
• Sensitivity: -93dB
• Input Voltage: +3.3 DC
• Operating temperature： -10 ℃ ~ +85 ℃
• Transmission distance: 5~15m in free space
• Size: 32mm * 16mm(1.26"*0.63")
• support AT command to debug the BLE
• support master-salve switch
• support transparent transmission serial port
• support bluetooth remote update the Arduino program

• Wiki Doc

• USB BLE-LINK x1
