Octopus Sonar:bit - ELECFREAKS EF04089

: SEN07030
€9.90
Tax included

Sonar:bit is a 3-wire ultrasonic module with the working voltage between 3-5V. It is available to be used to 3.3V or 5V micro-controller system. With only one 3-wire(GVS) cable, it can work properly. Compared to the normal 4-wire ultrasonic module, it has saved one IO port. The measurement range of sonar:bit is 4cm-400cm. It can output stable and accurate measurement data with ±1cm tolerance only. It’s available for short distance measuring in robtics device, micro:bit and Arduino etc.

If you want to know more about this product, please check its Wiki Page.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

Sonar:bit is an ultrasonic module with a 3-5V working voltage. It is available to be used in a 3.3V or 5V microcontroller system. With only one 3-wire(GVS) cable, it can work properly. Compared to the normal 4-wire ultrasonic module, it has saved one IO port. The measurement range of sonar:bit is 4cm-400cm. It can output stable and accurate measurement data with ±1cm tolerance only. You can use this module for occasions like short-distance measurement, smart cars, robots, micro:bit and Arduino teaching, etc.



Features

Input voltage: 3V~5V
Enable to drive micro:bit or Arduino directly.
Standard 3-wire GVS connector, which occupies 1 IO port only.

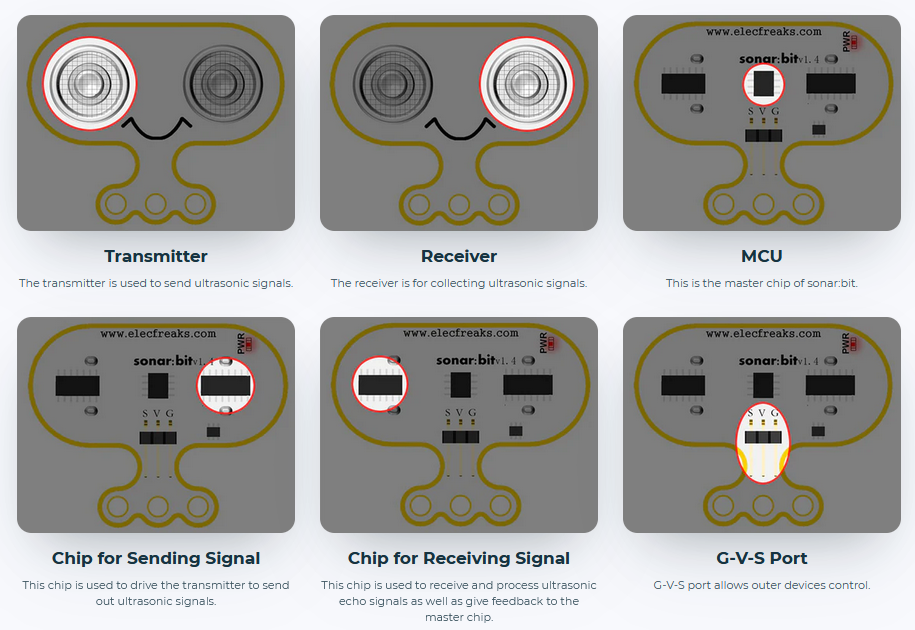

Introduction of major components









SPECIFICATION

Item

Parameter

Product Name

Sonar:bit

SKU

EF04089

Input Voltage

DC 3~5V

Measurement Range

4~400cm

Accuracy Tolerance

±1cm

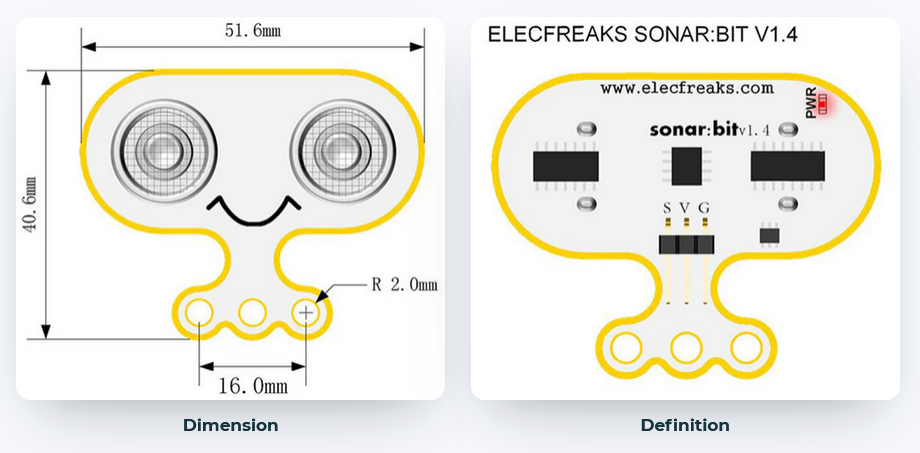

Size

40.6mm x 51.06mm

Net Weight

12g

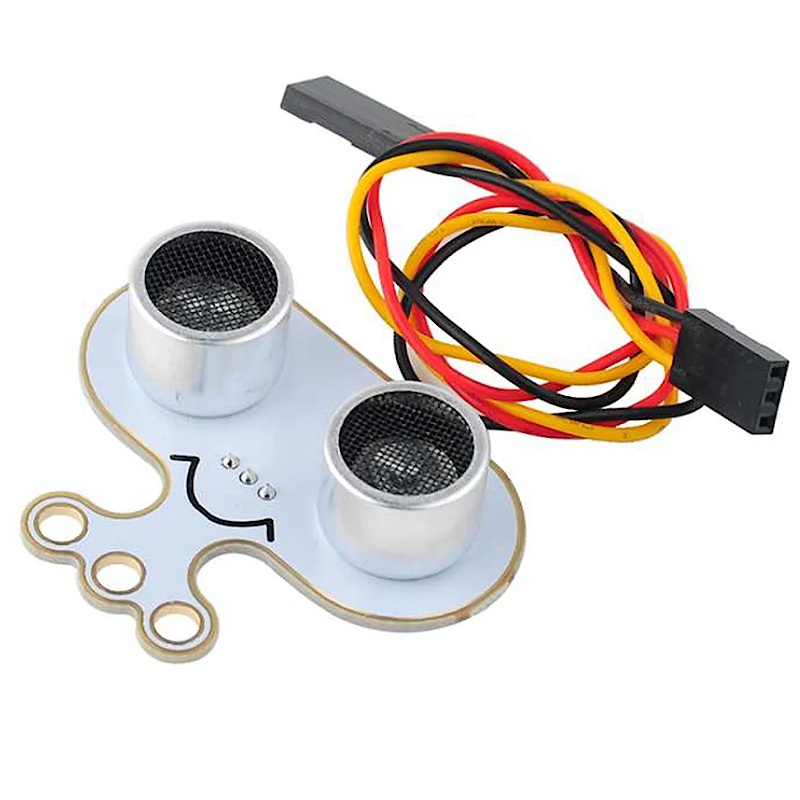

PACKING LIST

Components

Qty(pcs)

Sonar:bit

1

GVS Jumper Cable

1



LEARN

Sonar:bit Guide

SEN07030
