Waterproof DS18B20 Temperature Sensor Kit Module - DFRobot KIT0021

: SEN06091
€7.50
Tax included

This is a waterproofed version of the DS18B20 Arduino Temperature sensor. Handy for when you need to measure something far away, or in wet conditions.

If you want to know more about this product, please check its Wiki Page.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

This waterproof temperature sensor kit use DS18B20 probe AS. It contains a probe with a resistor module. So it is easy to connect on the Arduino board.

The DS18B20 temperature sensor provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface so that only one wire (and ground) needs to be connected from a central microprocessor. Compatible with 3.0-5.5V systems.

Check 27 Pcs Sensor Kit for Arduino to get more sensors for Arduino.

If you want to make a simple water purifier, we recommend buying together with Gravity: Analog TDS Sensor/Meter for Arduino.



Specification

  1. Operating voltage: 3.0~ 5.5V

  2. ±0.5°C Accuracy from -10°C to +85°C

  3. Usable temperature range: -55 to 125°C (-67°F to +257°F)

  4. 9 to 12-bit selectable resolution

  5. Uses 1-Wire interface- requires only one digital pin for communication

  6. Unique 64 bit ID burned into chip

  7. Multiple sensors can share one pin

  8. Temperature-limit alarm system

  9. Query time is less than 750ms

  10. 3 wires interface:

    1. Type A

      1. Red wire - VCC

      2. Black wire - GND

      3. Yellow wire - DATA

    2. Type B

      1. Red wire - VCC

      2. Yellow wire - GND

      3. Green wire - DATA

  11. Stainless steel tube 6mm diameter by 35mm(1.34") long

  12. Cable diameter: 4mm(0.16")

  13. Length: 90cm(35.43")



Documents

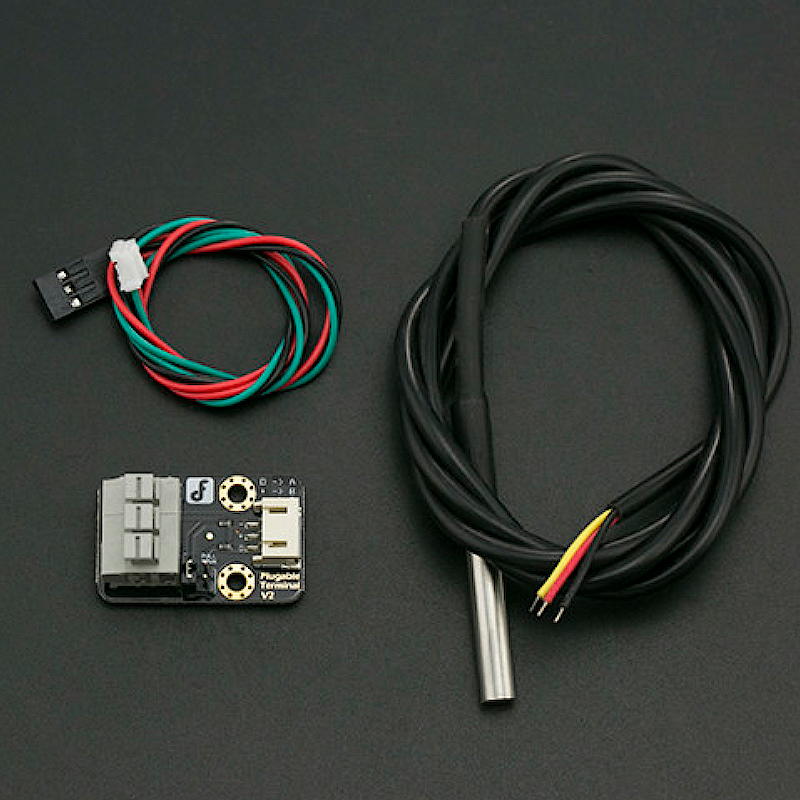

Shipping List

  1. Waterproof DS18B20 Digital temperature sensor

  2. Terminal sensor adapter

  3. Digital sensor cable

SEN06091
