If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.

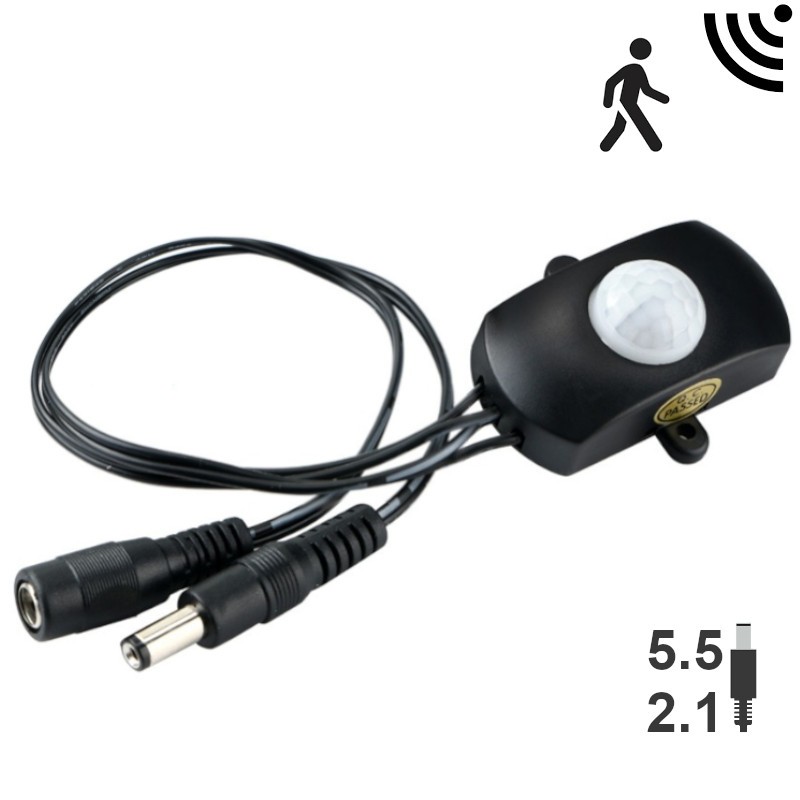

PIR (Passive infrared) Motion sensor is pyroelectric device can detect human movement by detecting infrared ray emitted by human body
Operating voltage is 5~24VDC, and output voltage is equal to input voltage
High sensitivity, easy for installing
Widely used on the Motion-activated lighting, LED strips security system, automatic sensory device and more
Specifications:
-Operating voltage:DC 5~24V
-Output voltage: Equal to input voltage
-Load current :5A
-Sensing method :Passive
-Detecting range :120 degrees cone angle
-Trigger way :continuous triggering
-Detecting distance :5M~7M
-Size: (L*W*H) 50*26*21mm
