STC-3018 Temperature Thermostat panel mount 230V 10A

: MRE02015
€14.95
Tax included

Temperature controller for panel mounting.

Ideal for regulating temperature in refrigerators, greenhouses or other electrical equipment.

  • 230Vac power supply
  • 10A Relay Output
  • Temperature measurement between -55 ~ 120ºC
  • Resolution: 0.1ºC
  • Sensor type: NTC 10K
  • Consumption: <3W

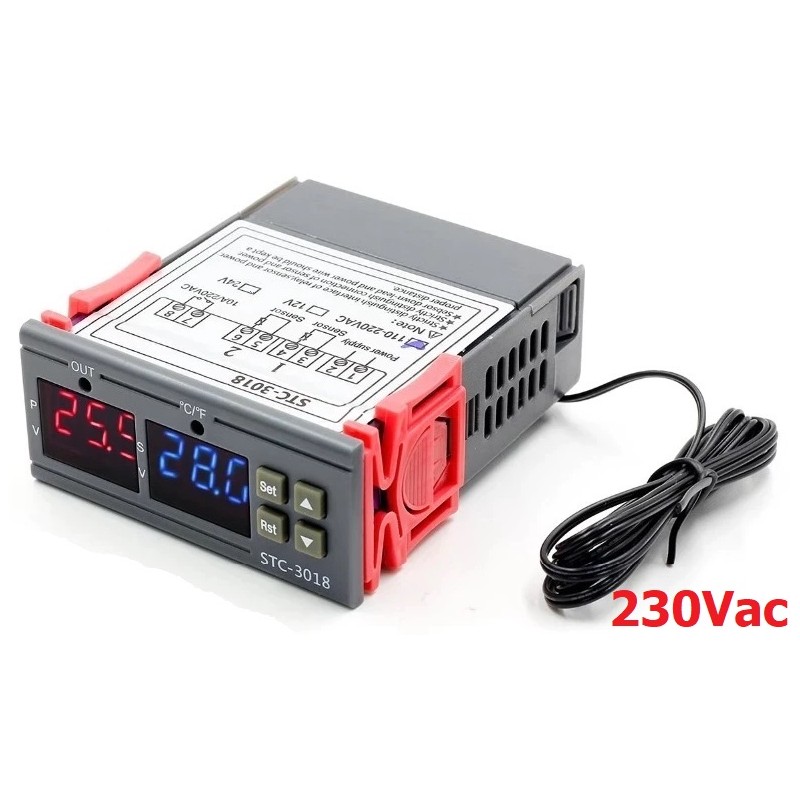

Note: This product is supplied with the temperature sensor shown in the image.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

Display Information:

Normal Mode: The red display on the left shows the temperature in real time, the blue display on the right shows the adjusted temperature.
Config Mode: The red display on the left shows the configuration mode, the blue display on the right shows the configuration content.

Display Info

Setup Configuration Codes:

Code

Function

Range

Default



Start / Stop Temperature Control

-55~120°C/-67~248°F

0°C/68°F

P0

Working mode

H

H/C

P1

Diference from defined value

0.2-10

2

P2

High temperature Alarm

-55~120°C/-67~248°F

80°C/176°F

P3

Low temperature Alarm

-55~120°C/-67~248°F

-55°C/-67°F

P4

Offset temperature calibration

-10.0 °c ~ 10.0 °c

0

P5

Output delay

0-60Min

0

P6

Presentation mode

C/F

C



Package Content:

  • 1X Temperature Controller
  • 1X NTC 10K Sensor

Size

MRE02015
