Humidity and Temperature Sensor - RHT03 | DHT22

: SEN06002
€11.60
Tax included

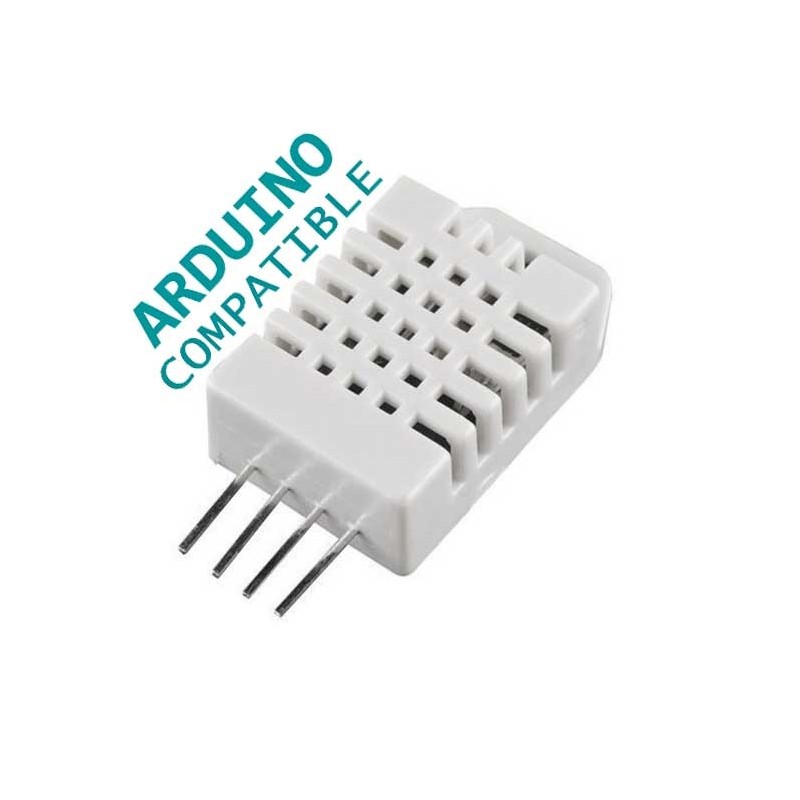

Humidity and Temperature Sensor - RHT03/DHT22

Description:

The RHT-03 (DHT22) is a low cost humidity and temperature sensor with a single wire digital interface. The sensor is calibrated and doesn't require extra components so you can get right to measuring relative humidity and temperature.



Features:

  • 3.3-6V Input
  • 1-1.5mA measuring current
  • 40-50 uA standby current
  • Humidity from 0-100% RH
  • -40 - 80 degrees C temperature range
  • +-2% RH accuracy
  • +-0.5 degrees C



Documents:

SEN06002
