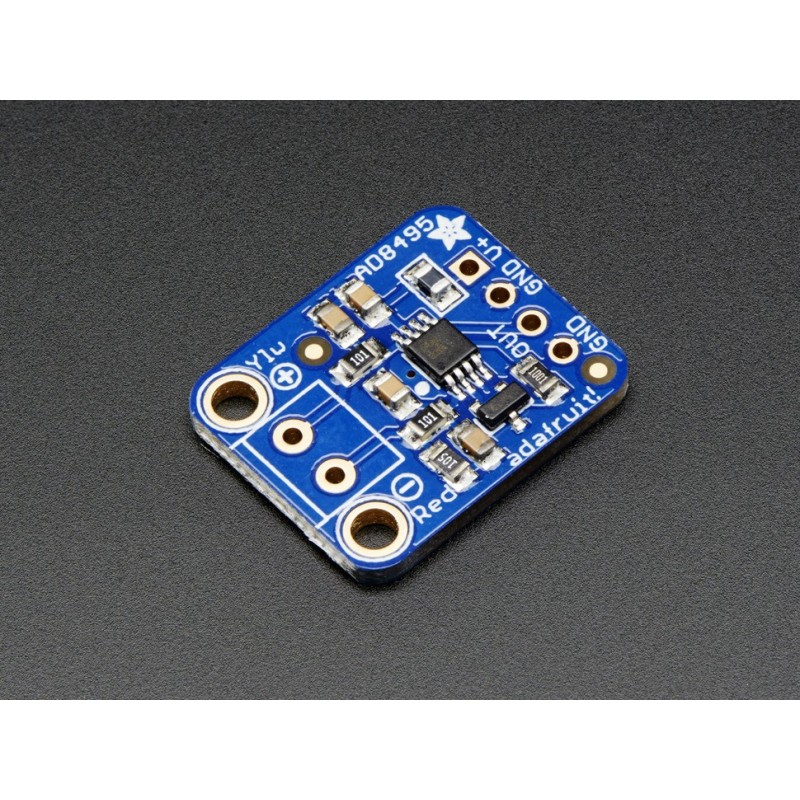

Analog Output K-Type Thermocouple Amplifier - AD8495 Breakout

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

• DESCRIPTION

  Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference. We have a couple digital thermocouple amplifiers in the shop already from Maxim. Now we're happy to introduce an excellent analog-output amplifier.

  Power the board with 3-18VDC and measure the output voltage on the OUT pin. You can easily convert the voltage to temperature with the following equation: Temperature = (Vout - 1.25) / 0.005 V. So for example, if the voltage is 1.5VDC, the temperature is (1.5 - 1.25) / 0.005 = 50°C

  Each order comes with a 2 pin terminal block (for connecting to the thermocouple), a fully assembled PCB with the AD8495 + TLVH431 1.25V precision voltage reference, and pin header (to plug into any breadboard or perfboard). Goes great with our 1m K-type thermocouple (not included). Not for use with any other kind of thermocouple, K type only!

  • Works with any K type thermocouple
  • Will not work with any other kind of thermocouple other than K type
  • Easy to use analog output
  • Temp range with 5V power: -250°C to +750°C output (0 to 5VDC)
  • Temp range with 3.3V power: -250°C to +410°C output (0 to 3.3VDC)





• TECHNICAL DETAILS

  • AD8495 Datasheet
  • Sensing Accuracy Range: ± 1°C around room temperature, ± 2°C for −25°C to +400°C
  • Sensing Temperature Max: 400°C
  • Sensing Temperature Min: -25°C
  • Supply Voltage: 3-18VDC

  Dimensions:

  • 20mm x 16mm x 2mm / 0.8" x 0.6" x 0.08"
  • Weight: 1.1g
