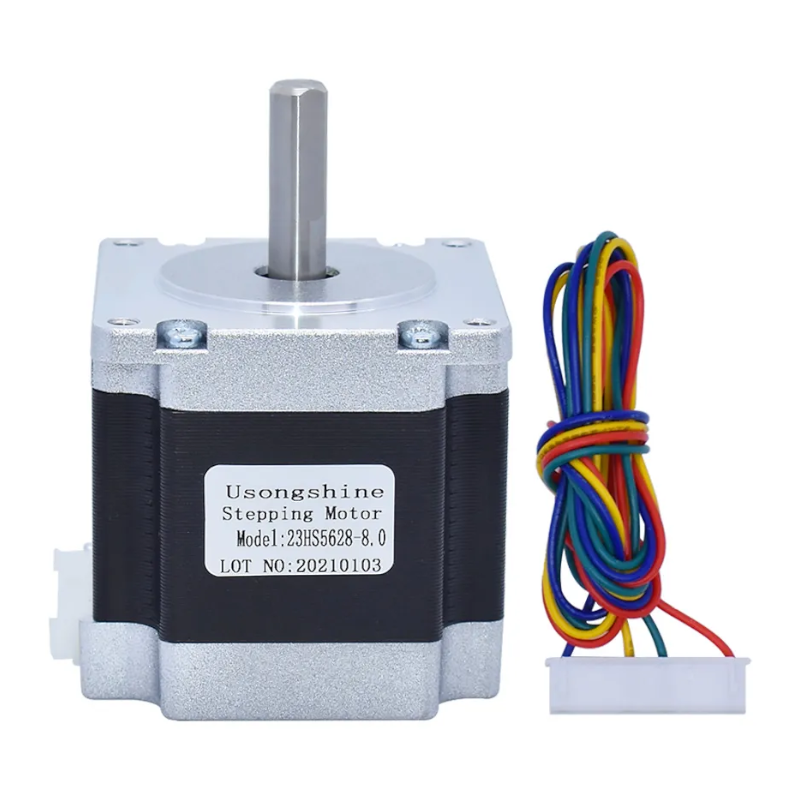

23HS5628 8mm shaft TWO-PHASE STEPPER MOTOR NEMA23
23HS5628 8mm shaft TWO-PHASE STEPPER MOTOR NEMA23
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Application:
-
CNC/3D Printers
-
High Torque related projects (Not dependent on speed)
-
Red(or Black): A+, Green(or Blue): A-, Yellow(or Green): B+ and Blue(or Red): B-.
-
Requires a H-Bridge or L4988 type stepper stick to drive.
Features:
-
Nema 23 Format
-
Bi-Polar Stepper Motor
-
200 Steps or 1.8 degrees per Step
-
Removable JST-XH connector (4 wires, but 6 pin connector)
-
Loose wires for easy screw terminal mounting
Specifications:
-
Step Angle: 1.8 degrees
-
Steps per Revolution: 200
-
2-Phase
-
Bipolar
-
Voltage: 2.5VDC
-
Current: 2.8Amps
-
Phase Resistance: 0.9Ω
-
Phase Inductance: 2.5mH
-
Holding Torque: 11.8 Kg/cm / 165 OZ-In
-
Moment of Inertia: 300 g.cm^2
- Shaft: 8mm
-
Weight: 0.7kg
