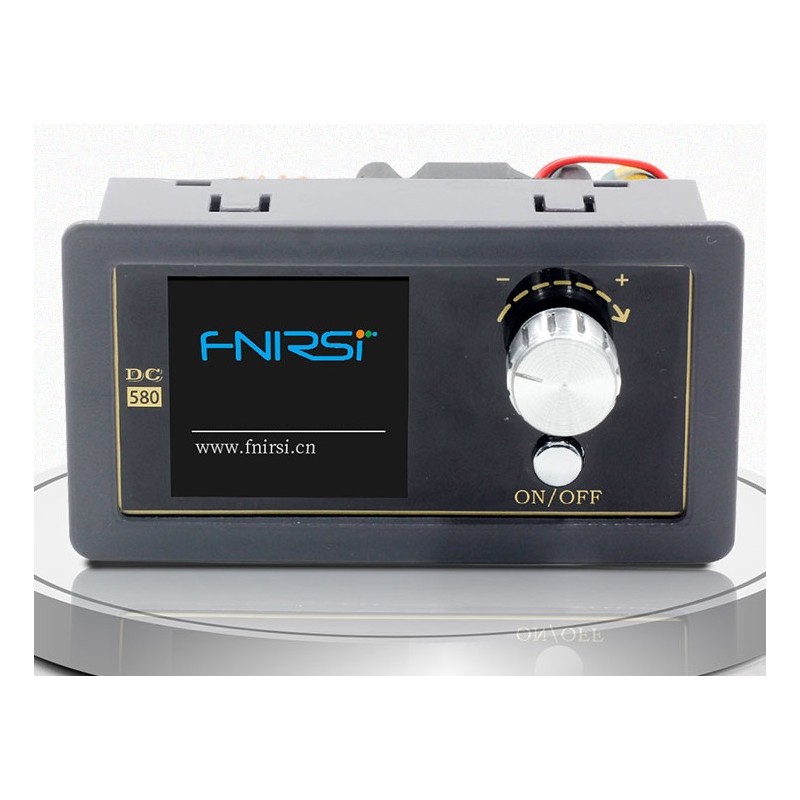

DC-580 Digital Controlled Buck-Boost - Panel Mount

This voltage and current regulator from FNIRSI can become your next bank power supply!

With this DC-DC converter you can regulate an output voltage between 1.8 ~ 32Vdc through an input between 8 ~ 32V, having the ability to do step UP or step DOWN. This means that with a 12V input, both you will be able to regulate down 12V as well as tb you will be able to obtain voltages above 12V. Note that there will always be a 1.8V margin around the entrance for which you are unable to regulate.

In addition to voltage regulation, you can also limit the maximum output current through configuration.

This DC-DC converter that we are presenting here, is capable of delivering up to 5A and reaching a maximum power of 80W as long as an input is greater than 15V and 100W.

It also provides connection to the PC via the USB port using the CH340 driver.

You can download the Software here, as well as the manual.
