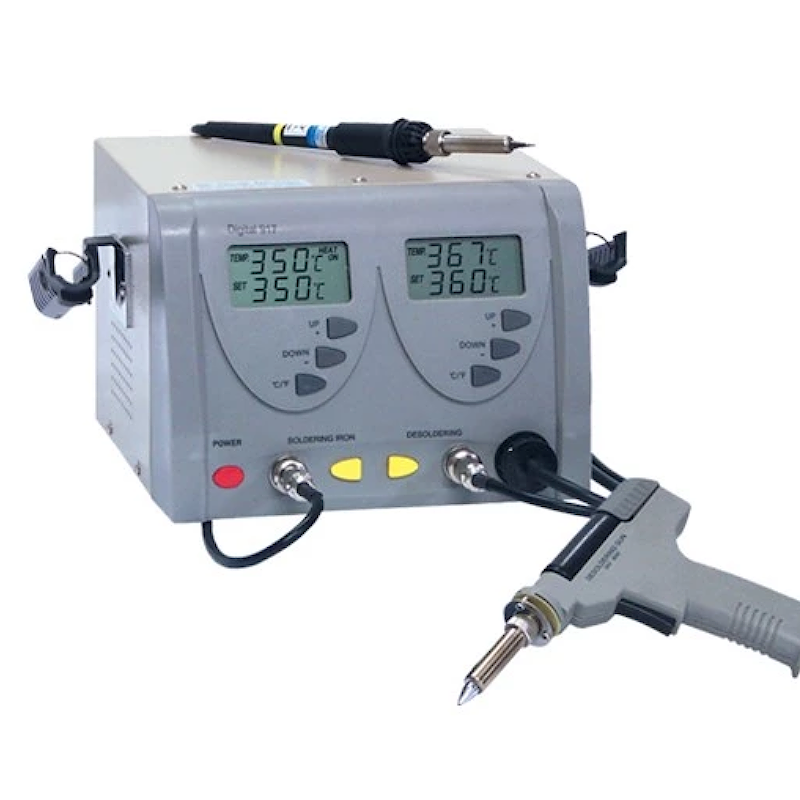

Soldering and desoldering station ZD-917

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

Temperature Controlled Soldering and Desoldering Station Model ZD-917 is a high-performance and multi-function station. It is suitable for soldering and desoldering. LCD display soldering & desoldering station features:
- Having one desoldering iron with absorbing gun and one soldering station in one station, and playing overall rolls with soldering and desoldering function.
- Exceptional high-performance PTC in the desoldering iron provide a long life and continuously controlled supply of heat, suitable for desoldering all type of components and easy removal of the residual solder.
- Having the thermostat function and suitable for soldering different components automatically. The soldering iron and desoldering iron can be used independently or at the same time.
- The temperature sensor on the top of the tips can check the tip temperature quickly and decreasing the possibility of the tip temperature falling off during the operating and suitable for lead free soldering.

Station:
- Input voltage: 220-240V AC / 50Hz
- Power consumption: 60W + 80W
- Main fuse: 3,15A
- Function display: LCD

Solder:
- Voltage: 24V AC
- Power: 60W (heat up rating 130W)
- Temperature: 160°C - 480°C
- Heating element: ceramic heater

Desolder:
- Voltage: 24V AC
- Vacuum pressure: 600mm Hg
- Power: 80W (heat up rating 130W)
- Temperature: 160°C - 480°C

Technical specification:

Dual LCD display

Desoldering gun + soldering iron

Power consumption: 60W soldering, 90W desoldering

Temperature: 160°C up to 480°C

High quality ceramic heater

Power supply: 220-240V AC/50Hz

Iron stands included

Parameters and specifications:

Function: soldering, suction

Power consumption: 80 W

Min. temperature: 160 C

Max. temperature: 480 C
