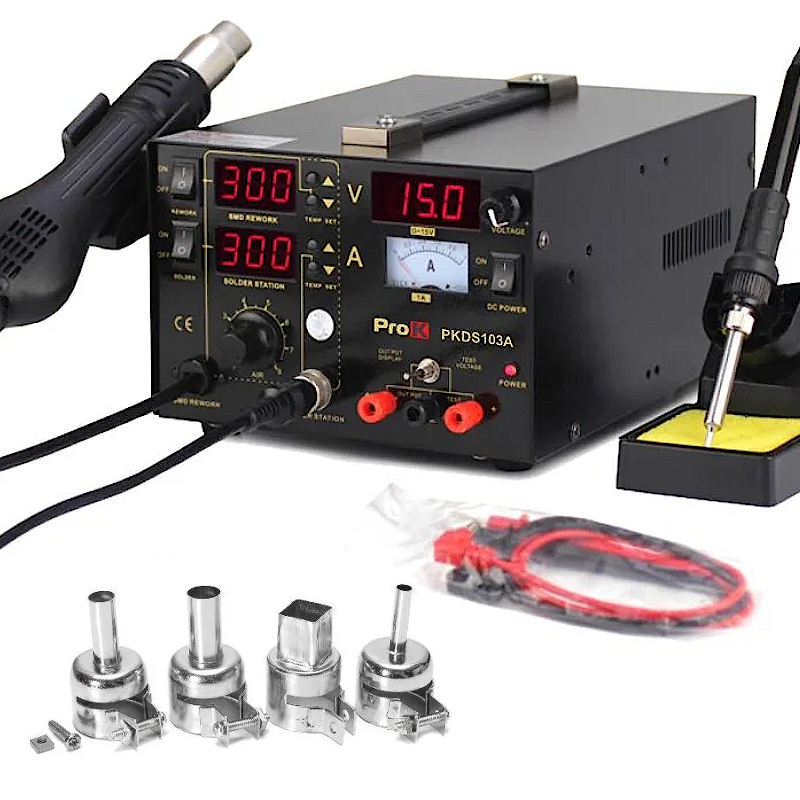

Hot Air SMD Soldering And Desoldering Station With Power Supply 0-15V 1A 800W - PROK PKDS103A
3IN1 PROFESSIONAL SOLDERING STATION: This 853D soldering integrated with an lead-free solder rework station, hot air gun and DC power supply, using independent dual-core micro-controller, which means they can work independently, when the problem occurs on one tool it does not affect the others
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Product Description
Classic model soldering station for all desoldering needs
The 853D 3in1 soldering station integrates 650W hot air gun, 45W soldering station and 15W 1A DC power supply.
This digitaB074ZBP95Jl soldering station is operating a PID regulator technology that is controlled by a microprocessor. It can quickly detect temperature and achieve temperature compensation, more convenient, more precise and more efficient.
The soldering station is also equipped with soldering aid accessories: soldering iron stand, soldering tip cleaner and 4 different size replaceable nozzle for hot air gun etc.
Hot Air Gun Station
This hot air gun station built in brushless motor, features large volume, maximum air up to 120 L/min, perfect to desolder large chips that has multiple pins in no time.
This heat gun is fan air model. This means it has large volume and small pressure. Please do NOT use with a nozzle less than 5mm.
Attention Please!
-
Since the air pressure is small, if use a small nozzle, the air cannot pass through the heating core, causing heat to accumulate in the handle and eventually burn the handle. The heating rate is very fast, producing super high heat in a few seconds
-
Please use low temperature and large amount of wind if it finish the work. This facilitates rapid heat dissipation and good for heating element extend life and protect the demolition welders chip safety.
|
|
|
---|---|---|
45W Soldering Iron Using a ceramic heating core, it reaches the desired temperature in seconds. |
3 LCD Display Independent
|
Main ON / OFF When not in use, the main power switch turns off, completely cutting off power to the machine, extending the life of the machine, conserving power and eliminating safety hazards. |
|
|
|
---|---|---|
Resistant Flame Retardant Material Protect various elements from heat generated due to high temperature operations. The heat-resistant silicone cable for safe handling. |
4 Different Rework Nozzles Equipped with 4 nozzles (5mm, 8mm, 10mm, 13mm*13mm square nozzle). Super easy to remove components, fix joints and jumpers, replace missing components. |
Advanced SMT Double-Sided Panels Product a neat arrangement. Signal flow is clear, and the stability and operational safety of the machine has been further strengthened. |
