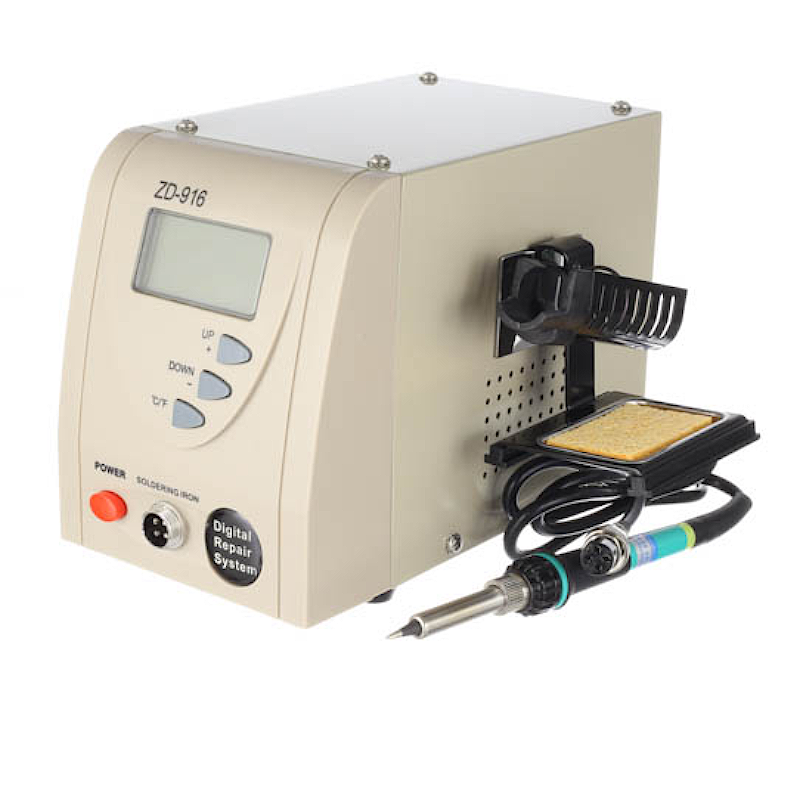

Soldering station 60W (130W) 160ºC-480ºC ZD-916

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

The soldering station designed for lead free soldering especially. Heating up from the room temperature to 350°C in 30 seconds. This tool is used in the fields of electronic research, teaching and production, especially in the repairing and soldering on the electronic appliances and communication equipments. LCD display.


Technical parameters :

1. Supply voltage: 230V AC / 50Hz

2. Power consumption: 60 W, short-term at heating up max. 130 W

3. Heater for voltage: 24 V

4. Feedback control of the tip temperature

5. Adjustable temperature: 160 - 480 ° C

6. Two-line blue backlit LCD

7. Weight: 1.9kg

8. Dimensions: (h, w, d): 165 x 130x 225 mm

Instruction manual
