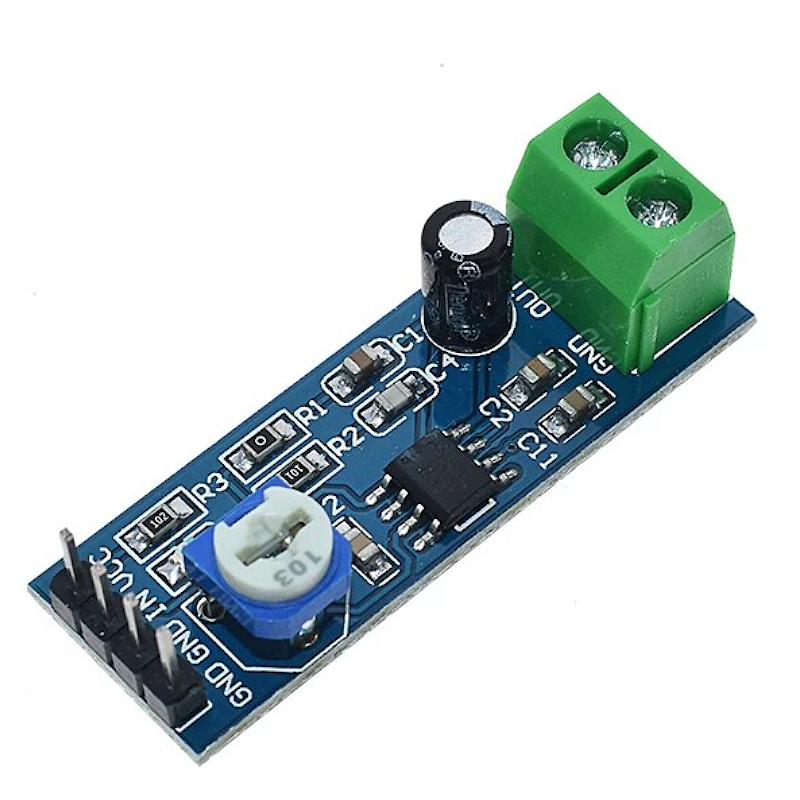

LM386 module audio power amplifier

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications:

1. LM386 chip;

2. Circuit Design with 200 Multiplying Benefits;

3. Integrated Speaker Wiring Block;

4. 10K Variable Resistor on Board, Can Adjust the Magnification Volume;

5. Onboard Energy Indicator;

6. Chip pins, can directly receive the audio signal;

7. Operating voltage: 5 - 12V;

8. Plate size: 41x13mm.

Includes:

• 1x LM386 Audio Amplifier Module.

Documents:

Datasheet

Schematics
