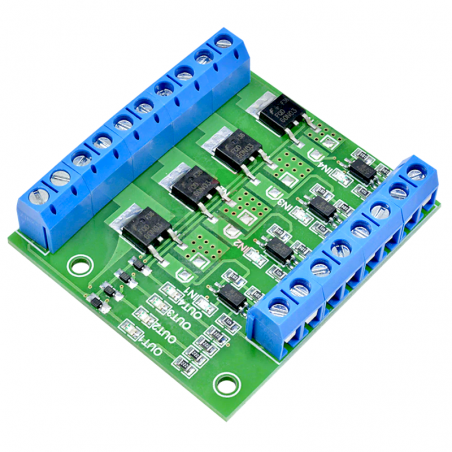

4 Channel N-MOSFET FQP60N03 Module with optocouplers

: MRE03046
€9.55
Tax included

The module is based on 4x FET model F5305S. We can input PWM signal to control motor speed, lightness of bulb, etc.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features:

FET module, input and output totally isolated from each other.
Signal trigger: digital high/low signal, can be connected to IO of micro-controller, PLC interface, DC power supply, etc.
The output can control high-power devices: motor, light bulb, LED light & strips, DC motor, small pumps, solenoid valve.
Input signal voltage: 3V~20V; Input current: about 5mA.
Output voltage: 5V~36V(Current: within 5A, Max. current is 20A. When current is over 5A, please add heat sink).

Specifications:

Input Signal: Voltage: 3V~20V; Current: 5mA
Output: Voltage: 5V~36V; Current: within 5A
Item Size: 78x65x15mm
Item Weight: 52g
Package Weight: 54g

Package Included:

1 x Trigger Switch Module wih 4 channels
MRE03046
