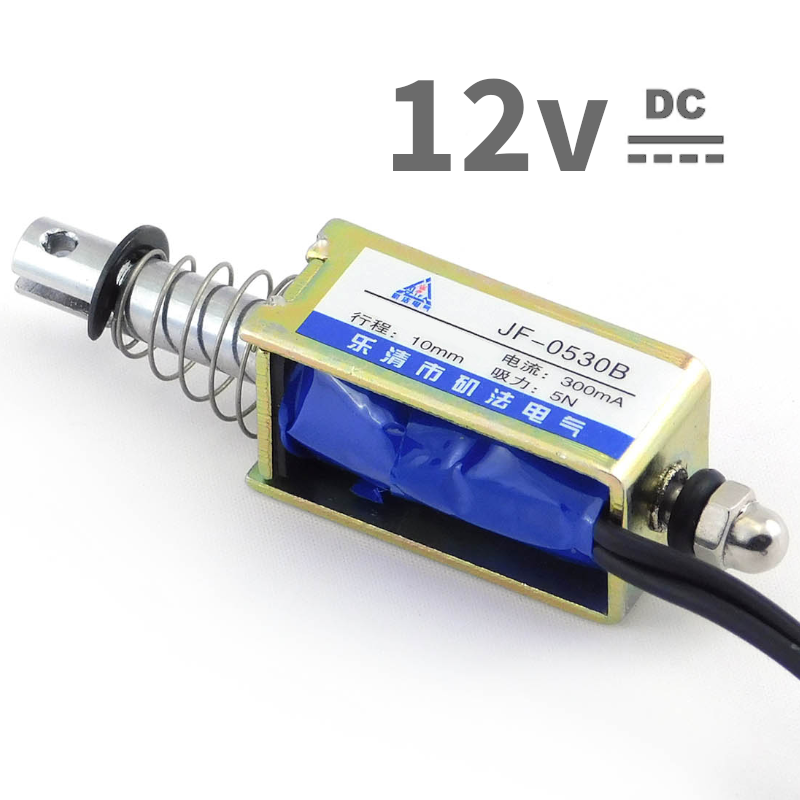

SOLENOID jf-0530b 12V 1A 5N - 10mm range

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications:

1. Product Name: DC Solenoid Electromagnet

2. Model:JF-0530B

3. Rated Voltage: DC 12V

4. Type: Pull Push

5. Rated Current: 300mA

6. Force& Stroke:5N/10mm

7. Body Size:30x16x15mm

8. Plunger Bar Size:6x58mm

9. Mounting Hole Dia.:2.5mm

10. Cable Length:20cm

11. Material: Metal, Electronic Parts

Description:

1. Pull push type, linear motion, plunger return, DC solenoid electromagnet.

2. DC Solenoid Electromagnet mainly used in vending machines, transport equipment, office facility household appliance, mechanical, etc.

3. Solenoids of this category work externally through pulling pushing in plunger.

4. When energized, doing work through pulling pushing in plunger joined object

Note: Please do not keep power on for more than about 2 seconds.
