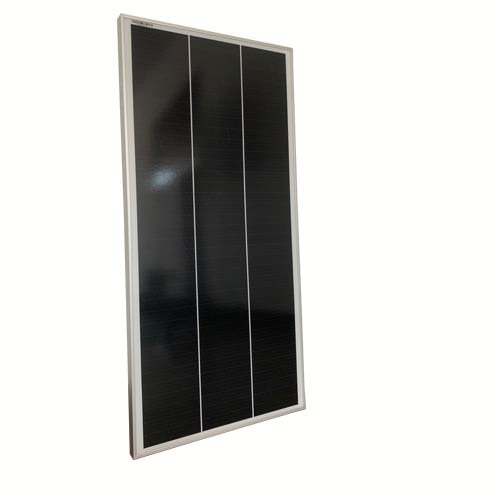

100W Solar Panel

: FAL09033
€67.50
Tax included

To build a complete photovoltaic solar system, please consider the following products:

BAT01059 + FAL09014 + FAL11000

or:

BAT01076 + FAL11002

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Advantages:

  • The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 21.4%.
  • Shingled string welding process, beautiful and neat.
  • Using tempered glass, high transparency.
  • Anti-corrosion EVA effectively protects the battery panel.
  • Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
  • Lightweight and flexible features can make it seamlessly integrated into your vehicle.
  • Packed in a single carton, with protective corners on all four corners.

Specification：

Mechanical Data



Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃
Nominal Power 100W
Cell Type Monocrystalline
Cell Efficiency 21.4%
Maximum Power Current (Imp) 5.04A
Maximum Power Voltage (Vmp) 19.86V
Open-circuit voltage (Voc) 23.70V
Short-circuit current (ISC) 5.34A
Maximum System Voltage 1000V
Output Tolerance +3%
Cable 500mm / 2.5mm2
Connector Type MC4 / MC4 Compatible

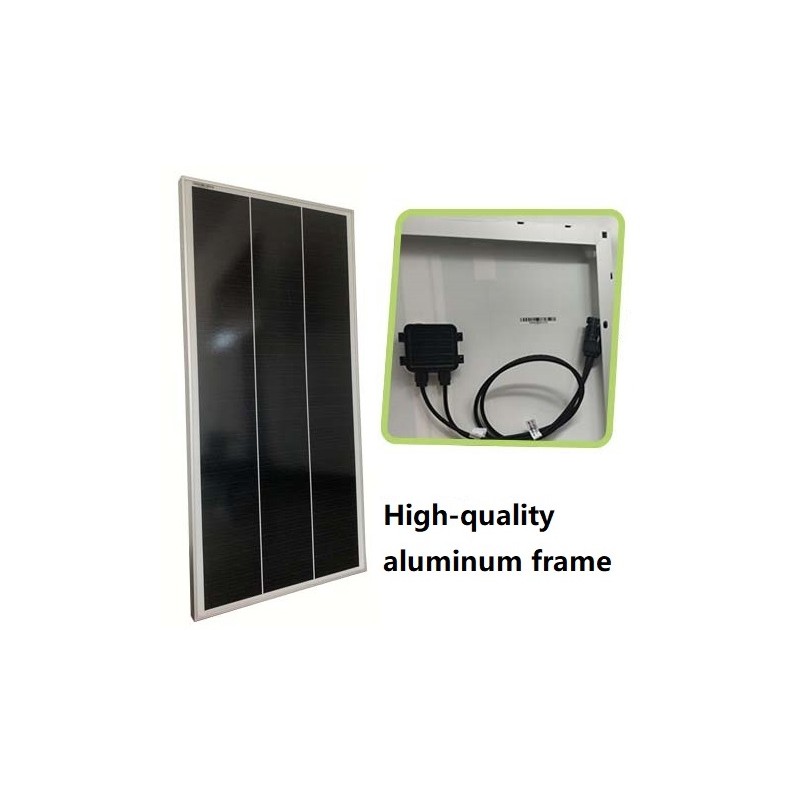

Module Structure Aluminum Frame / Glass / EVA /Backsheet (White)
Junction box rating ≥IP67
Number of Diodes One
Working Temperature -40℃~+80℃
Packaging
Module Dimensions 1080*510*30mm
Module Weight 6.30kg
Package Single Package

Product Details：

Details

Packaging Protection



100W Solar Panel 1080x510





Scope of application：

Prevent the loss of electricity: used on the roof of the car, charge the car battery at any time. Can prevent the car battery from losing electricity, and solve the situation that the car cannot be fired due to the battery loss caused by the long-term parking of the vehicle.

On-board electrical appliances: when using on-board electrical appliances, the original power of the car battery will not lose (car audio, navigator, driving recorder, exhaust fan, car blower, car refrigerator, cell phone, etc.)

Experimental power generation: DIY experiments for schools.
