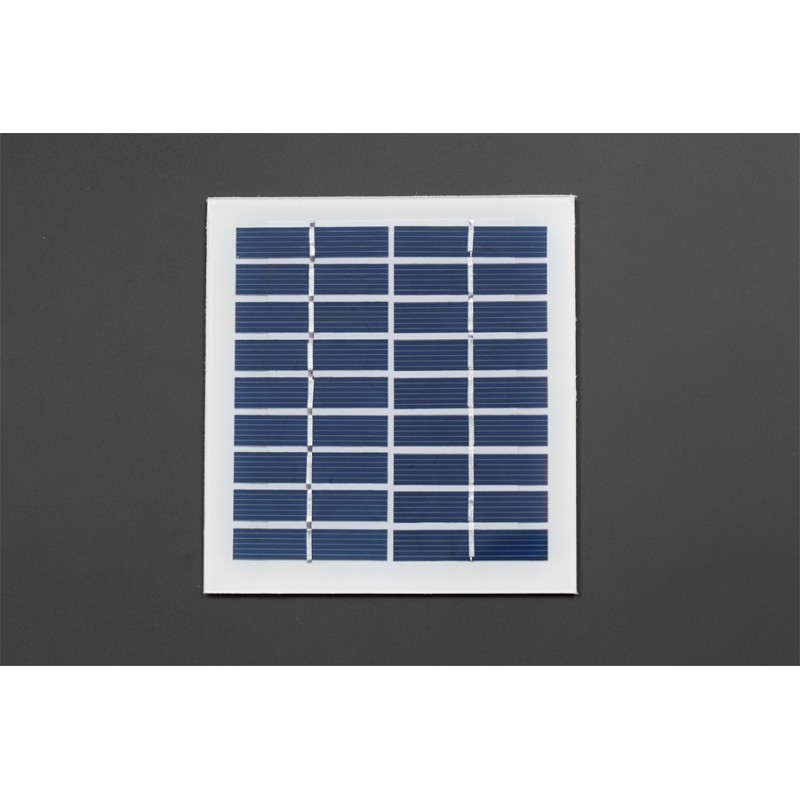

Solar Panel (9v 220mA)

: FAL09003
€9.50
Tax included
Quantity

If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.

INTRODUCTION

Need a clean energy source for your project? Check out this compact,high quality,high output endurable solar panel.The peak power output is around 9V at 220mA.Can also be used in series to work as recharger for 12V batteries.
Ultra-white glass lamination process provides an efficient and waterproof surface for the panel.The back of the panel has separate aluminium wires.
Note:The above refers to the electrical performance parameters measured under standard test conditions, namely: light intensity 1000W / ㎡, spectrum AM1.5, cell temperature 25 ℃

APPLICATIONS

  • Solar Powering
  • Transport sector
  • Communication / communications

Specification

  • Working voltage: 9V
  • Operating Current: 220mA
  • Open circuit voltage: 9.6V
  • Short circuit current: 500mA
  • Power: 2W
  • Use of the environment: -40 ℃ ~ 80 ℃
  • Performance: corrosion, moisture
  • Size: Length 135mm(5.31") X width 125mm(4.92")

SHIPPING LIST

  • Solar Panel (9v 220mA) x1
FAL09003
