Overview

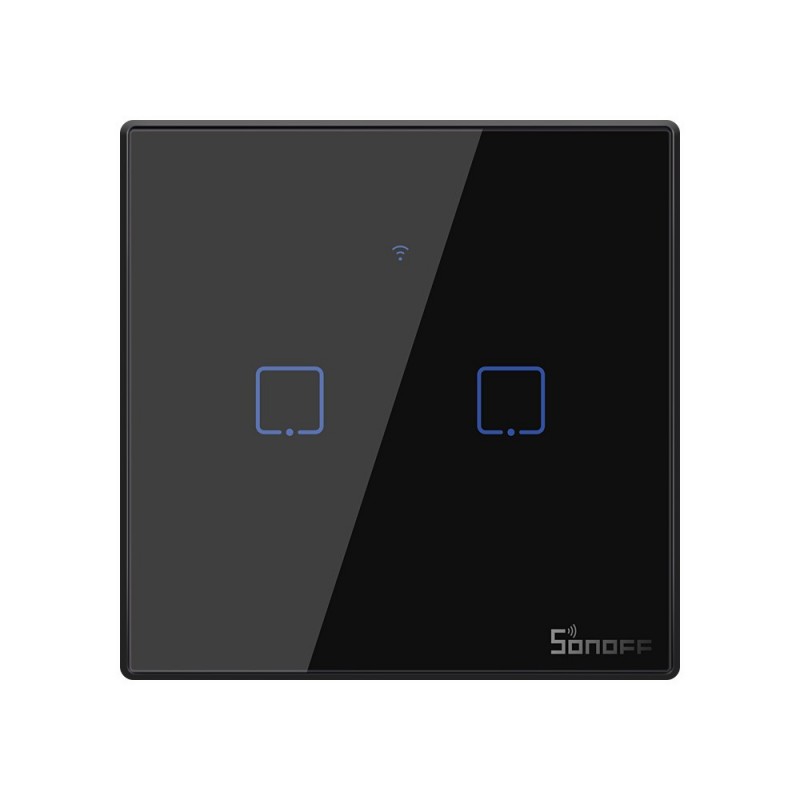

The WiFi smart switches with 1-3 gangs are divided into T0(EU & UK &US), T1(EU & UK), T2(EU & UK &US) and T3(EU & UK &US). T3 is available in black, and T0, T1 and T2 are available in white. Additionally T1, T2 and T3 support 433MHz remote controller to control.
All switches can be controlled remotely using your phone, and devices connected with switches can work independently. Works with Amazon Alexa and Google Assistant which let you turn on or off your appliances with a voice command, perfect for those need to handle much housework simultaneously. Features sensitive touch buttons that are attached on the simple and stylish switches to ensure a modern and nice decoration on any wall surface. A slight tap for easier control. If worry your monthly electricity bill is overwhelmed by power-hungry appliances, or wanna turn on your coffee maker while you’re sitting on the sofa, the time schedule is a good choice. Set a time for devices and the switches will help you turn on or off them automatically. Tailor smart scene for your appliances. simply set an event to happen to trigger one SONOFF device or groups of devices with a tap on your phone. Your devices will not run because of an abnormal WiFi network, the LAN control hence is designed to make sure they can work normally.
Compatible with IFTTT function, the switches can communicate with a slew of devices and services, to trigger them on or off. There are several complicated steps when we start to access a smart home, to pair, enter account and password, name and so on. The share control provides you a quick way to allow you and your family to control devices together. You’re not sure whether turning off the heater when leaving home, just take your phone out and open the eWeLink app to check the real-time device status.
Check out the differences of TX Series below:
<
Check out the amazing features of TX Series below:
<
Specification
- Model:T0/ T1/ T2/T3
- Standard:US/UK/EU
- Gang:1 gang/2 gang/3 gang
- Color: White/Black
- Input: AC 100-240V 50/60Hz 2A Max
- Output: AC 100-240V 50/60Hz, 2A/Gang, 6A/Total Max
- Enclosure Material: Toughened Glass Panel + PC
- Wireless Standard: IEEE 802.11 b/g/n 2.4G, 433MHz
- UK Dimensions: 86*86*35(mm)
Downloads
Smart Home Product List
| Product Name |
Feature |
LAN Control |
Input Voltage |
Max Current |
Max Power |
Wireless Frequency |
Wiki |
Shopping |
| Sonoff Basic |
Wireless control switch |
Yes |
90~250V AC |
10A |
2200W |
2.4Ghz |
Click |
Click |
| Sonoff RF |
WiFi & RF smart switch |
Yes |
90~250V AC |
10A |
2200W |
2.4Ghz,433MHz |
Click |
Click |
| Sonoff SV |
Low voltage Input |
Yes |
5~24V DC |
10A |
240W |
2.4Ghz |
Click |
Click |
| Sonoff TH10/TH16 |
Monitor temp.&hum. |
NO |
90~250V AC |
10A/15A |
2200W(10A)
3500W(15A)
|
2.4Ghz |
Click |
Click |
| Sonoff Dual |
Remote control 2 devices |
NO |
90~250V AC |
16A |
3500W |
2.4Ghz |
Click |
Click |
| Sonoff Pow |
Report power &power usage |
NO |
90~250V AC |
15A |
3500W |
2.4Ghz |
Click |
Click |
| Sonoff Pow R2 |
Upgraded power monitoring switch |
NO |
90~250V AC |
15A |
3500W |
2.4Ghz |
NO |
Click |
| Sonoff G1 |
GPRS/GSM smart switch |
NO |
90~250V AC |
16A |
3500W |
2.4Ghz |
Click |
Click |
| Sonoff 4CH (R2) |
4 Gang WiFi wireless switch |
NO |
90~250V AC |
10A |
2200W |
2.4Ghz |
Click |
Click |
| Sonoff 4CH Pro (R2) |
4 Gang WiFi & RF 3 working mode switch |
NO |
90~250V AC/ 5~24V DC |
10A/Gang |
2200W/gang |
2.4Ghz, 433MHz |
Click |
Click |
| Sonoff LED |
App control dimming LED |
NO |
180~265V AC |
0.6A |
42W |
2.4Ghz |
NO |
Click |
| Sonoff Touch |
WiFi wall touch switch |
Yes |
90~250V AC |
2A |
400W |
2.4Ghz |
NO |
Click |
| Sonoff T1 UK |
WiFi RF wall touch switch |
Yes(1 gang only) |
90~250V AC |
2A/gang |
600W/gang |
2.4Ghz,433MHz |
NO |
Click |
| Sonoff T1 EU |
WiFi RF wall touch switch |
Yes(1 gang only) |
90~250V AC |
2A/gang |
600W/gang |
2.4Ghz,433MHz |
NO |
Click |
| Sonoff T1 US |
WiFi RF wall touch switch |
Yes(1 gang only) |
90~250V AC |
2A/gang |
600W/gang |
2.4Ghz,315MHz |
NO |
Click |
| Sonoff Slampher |
Wireless control light holder |
Yes |
90~260V AC |
2A |
200W |
2.4Ghz,433MHz |
Click |
Click |
| Sonoff B1 |
Dimmable White&Color Bulb |
NO |
90~250V AC |
2A |
6W |
2.4Ghz |
NO |
Click |
| Sonoff S20 |
EU/US/UK/AU/CN Smart socket |
Yes |
90~250V AC |
10A |
2200W |
2.4Ghz |
Click |
Click |
| Sonoff S26 |
EU/US/UK/AU/CN Smart Plug |
Yes |
90~250V AC |
10A |
2200W |
2.4Ghz |
NO |
Click |
| Sonoff S30 |
US Smart socket |
Yes |
110~125V AC |
10A |
- |
2.4Ghz |
NO |
Click |
| Sonoff S31 |
US smart plug |
NO |
90~264V AC |
16A |
- |
2.4Ghz |
NO |
Click |
| Sonoff iFan 02 |
LED celing fan driver |
NO |
90~250V AC |
Fan-2A/Light-5A |
Fan:500W
Light:1250W
|
2.4Ghz |
NO |
Click |
| 1 Chnl Inching/self-locking Switch |
Access control switch |
Yes |
5V/12V DC |
10A |
50/120W |
2.4Ghz |
NO |
Click |
| Sonoff SC |
Monitor indoor environment |
NO |
USB 5V |
80mA |
0.4W |
2.4Ghz |
Click |
Click |
| Sonoff RF Bridge 433 |
Remote control 433MHz RF devices |
NO |
USB 5V |
- |
- |
2.4Ghz,433MHz |
Click |
Click |
| Sonoff L1 Smart LED Light Strip |
Remote control LED Light Strip |
NO |
12V DC |
- |
- |
2.4Ghz |
NO |
Click |
| SONOFF BASICR3 |
WiFi DIY Smart Switch |
Yes |
AC 100-240V |
10A |
2200W |
2.4Ghz |
NO |
Click |
| SONOFF RFR3 |
WiFi DIY Smart RF Control Switch |
Yes |
AC 100-240V |
10A |
2200W |
2.4Ghz, 433MHz |
NO |
Click |
| SONOFF TX Series UK EU US |
WiFi Smart Wall Switches |
Yes |
AC 100-240V 50/60Hz 2A Max |
2A/Gang, 6A/Total Max |
/ |
2.4Ghz, 433MHz |
NO |
Click |
| SONOFF iFan03 |
Smart Ceiling Fan & Light Controller |
No |
AC100-240V 50/60Hz 5A |
/ |
/ |
2.4Ghz, 433MHz |
NO |
Click |
| SONOFF MINI |
Two Way Smart Switch |
Yes |
AC 100-240V 50/60Hz 10A Max |
/ |
/ |
2.4Ghz |
NO |
Click |
| SONOFF SlampherR2 |
Smart Lamp Holder |
Yes |
AC 100-240V 50/60Hz |
/ |
/ |
2.4Ghz, 433MHz |
NO |
Click |
| SONOFF S55 |
Smart Waterproof Socket |
Yes |
AC 100-240V 50/60Hz 10A-16A |
/ |
/ |
2.4Ghz |
NO |
Click |
For technical support, please go to Itead smart home forum
