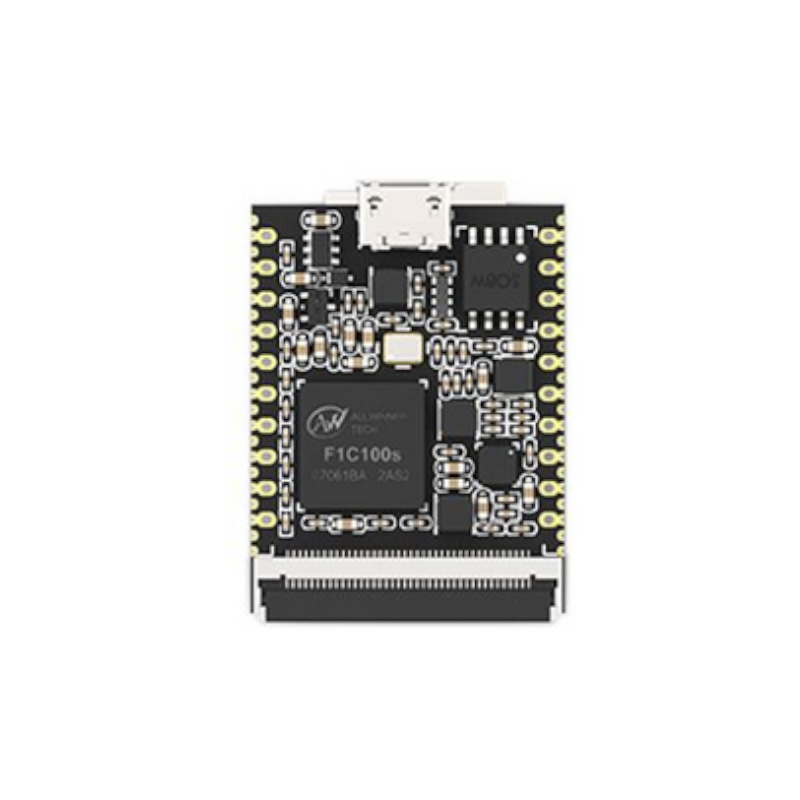

Lichee Nano is an SD Card Sized Linux Development Board Powered by Allwinner F1C100s ARM9 Processor
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Features/Specifications
-Allwinner F1C100s, ARM 926EJS processor,up to 900MHz
-32MB DDR integrated into SoC, 16MB SPI Flash
-Onboard TF Slot, can be boot from TF Card,
-40-pin RGB LCD FPC connector supporting 272×480, 480×800, 1024×600
and other resolutions resistive displays(and capacitive displays trough the adapter board).
-Support 720P video output, support video stream decoding such as H.264 / MPEG
-SDIO for WiFi module
-SPI x2, TWI x3, UART x3
-OTG USB x1, TV out
-PWM x2, LRADC x1
-Headphone output x2, Mic x1
-Input 5V via micro USB port, 3.3 to 5V via pin
-Output – 3.3V, selectable input RTC voltage
-Power Consumption – 54mA (idle) with Linux, 250mA with display
-Storage Temperature: -40~125°C; operating: -20 to 70°C
Software and development environment
Target application scenario:
Size and weight | |
Core board size | 25.4x33.0mm |
Core board weight | 4.2±0.2g |
Precautions | |
start up | Nano needs card boot (or solder SPI flash), only plug in USB without any phenomenon |
System debug serial port | UART0, specific position reference pin diagram |
USB interface | OTG usb, power and communication |
Operating temperature | -20~70℃ |
Part List | |
Lichee Nano | x1 |
WiFi Module | x1 |
OTG | x1 |
HSCODE | 8543709990 |
USHSCODE | 85177000 |
