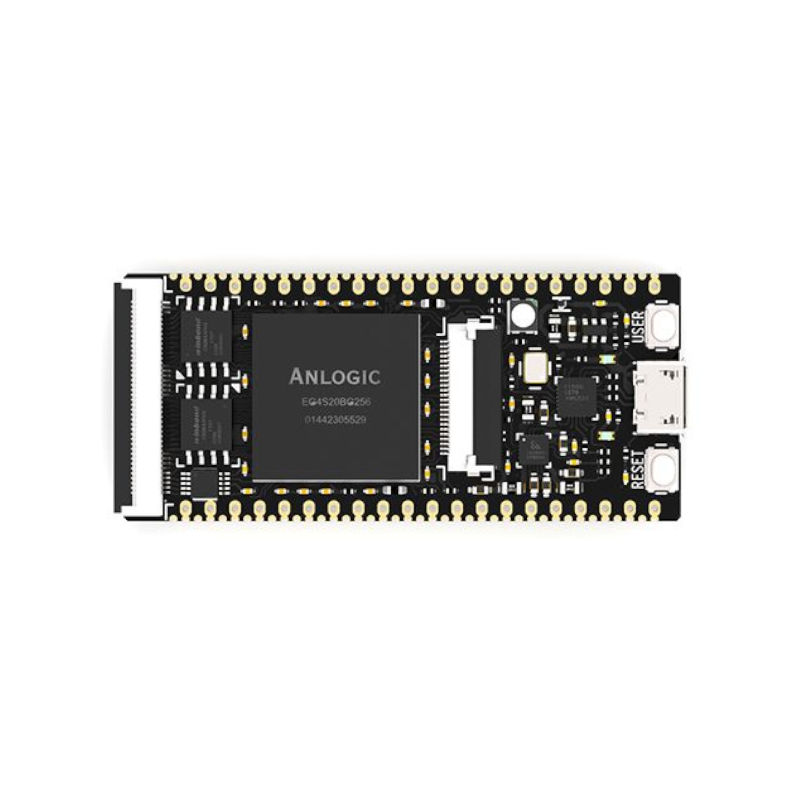

Sipeed TANG PriMER FPGA Development Board

: PCO05083
€27.85
Tax included
  • Core unit: Anlogic Technologies EG4S20
  • Logical unit: 20K (LUT4/LUT5 hybrid architecture)
  • SRAM: About 130KB
  • SDRAM: Built-in 32bit bit width 64MBit
  • Flash: FPGA configuration Flash, 8Mbit User Flash, nor/nand optional
  • Download and debug: Onboard FPGA JTAG Download Debugger, RV debugger can debug hummingbird core
Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Tang features Anlogic EG4S20 FPGA – unrelated to Amlogic – which run a RISC-V softcore,  and all is packaged in a small small form factor.

  • Interface:

- FPC40P socket, can be connected to RGB LCD, VGA adapter board
- FPC24P socket, can be connected to DVP camera, high speed ADC module
- Resistive touch screen controller for I2C interface, used with RGB LCD

  • Pin and lead:

- The adjacent pins LVDS are drawn in the same length, leading out 8 GCLKs, and all 8 ADCs are taken out.
- Double row pin spacing 900mil, compatible with breadboard development
- Half hole leads to an extra 40 IO, and the whole board leads to 130+ IO

  • Electrical characteristics:

- Micro USB 5V power supply; 2.54mm pin
- 3.3V~5V power supply; 1.27mm stamp hole power supply
- 3-channel DCDC power supply chip, stable and efficient power supply
- independent adjustment of Bank0 IO level



Software function

Target application scenario

  • High-speed communication interface interconnection
  • Learning, debugging, research of soft cores such as RISC-V
  • Machine vision processing
  • Parallel computing acceleration

Size and weight
Development board size 25.4x56.0mm
Development board weight 6.2±0.1g
Precautions
RV debugging When using the RV debugger, if you need to use USB power, try to use a shorter USB cable.
Micro-USB The  USB  interface  can  be  used  for  power supply, and the interface is fragile. Please pay attention to the use.
Download and debug On-board  FPGA  JTAG  download  debugger, debugging  hummingbird core requires  other debuggers, such as RV, JLink
Operating temperature -20~85℃
Power consumption and current No-load current is about 50mA


ECCN/HTS

HSCODE 8543709990
USHSCODE 8471500100
UPC
PCO05083
