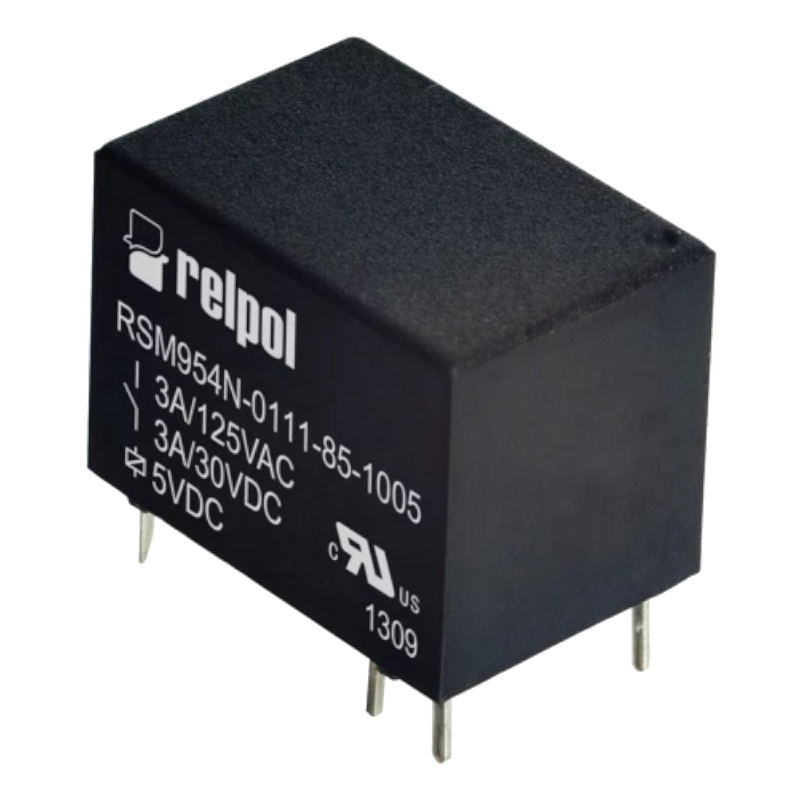

Relay 5V 3A SPDT compaible with Breadboard

: CEL14009
€1.50
Tax included
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Type of relay

electromagnetic



Contacts configuration

Contacts configuration



SPDT



Rated coil voltage

5V DC



Contact current max.

3A



AC contacts rating @R(at resistive load)

3A / 125V AC



DC contacts rating @R(at resistive load)

3A / 30V DC



Relay series

RSM954N



Switched voltage

max. 30V DC, max. 220V AC



Relay variant

monostable, subminiature



Mounting

PCB



Coil resistance

75Ω



Coil voltage min.

3.75V DC



Coil voltage max.

5.5V DC



Operate time

5ms



Body dimensions

15.5x11x11.5mm



Release time

5ms



Coil power consumption

360mW



IP rating

IP64



Mechanical durability

100000000 cycles



Operating temperature

-25...55°C



Contact resistance

50mΩ



Electrical life

100000 cycles



Contact material

Ag/Au 0,2μm



Terminal pitch

2.54mm



OEM number

2614624



Documentation.pdf

CEL14009
