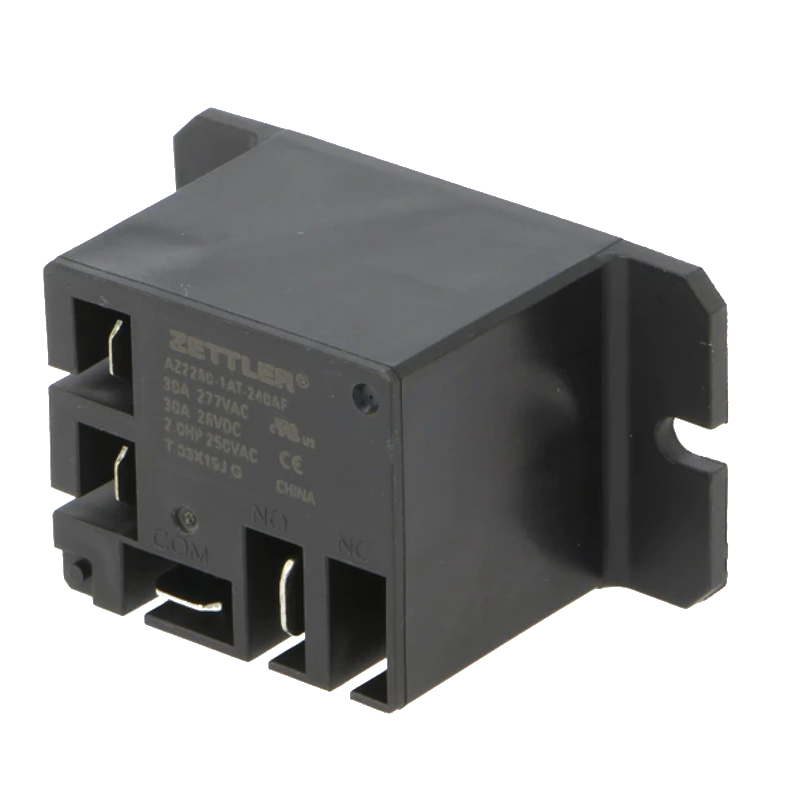

Electromagnetic Relay SPST-NO Ucoil 240Vac contact 30A

: MRE03030
€3.50
Tax included

Eletromagnetic relay with coil, 30A 250VAC

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Manufacturer
ZETTLER

Type of relay
electromagnetic

Contacts configuration
SPST-NO

Rated coil voltage
240V AC

Contact current max.
30A

Relay series
AZ2280

Relay variant
power

Operating temperature
-40...85°C

Mounting
on panel

Coil resistance
13.49kΩ

Body dimensions
50.2x27.5x27.8mm

Switched voltage
max. 28V DC,   max. 277V AC

AC contacts rating @R
30A / 277V AC

Contact resistance
50mΩ

DC contacts rating @R
30A / 28V DC

Contact material
AgCdO



Additional information

  1. Gross weight: 30.83 g
  2. Manufacturer part number: AZ2280-1AT-240AF

 https://www.tme.eu/html/gfx/image_31110.jpg

https://www.tme.eu/html/gfx/image_31109.jpg



MRE03030
